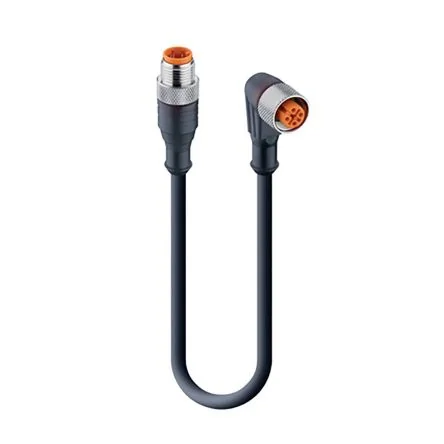

Lumberg Automation Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 600mm - 11777 RST 3-RKWT/LED A 4-3-224/0,6 M
This 600mm M12 sensor actuator cable connects straight male to right angle female with 2xLEDs for efficient operation.
Manufacturer part number: 11777 RST 3-RKWT/LED A 4-3-224/0,6 M
GTIN: 4020841221415
Series = RST
Number of Cores = 3
Length = 600mm
Connector 1 Orientation = Straight
Connector 2 = M12
Coding = A
The Belden sensor/actuator double-ended cordset has 4-pin M12 straight male connector to 4-pin M12 angled female with 2xLEDs (PNP). The cable length is 0.6m. The electrical voltage rating is 10V to 30V DC and a current rating is 4A.A-coded Body colour is translucent Contact base material is CuSn Operating temperature is -40°C to +90°C
