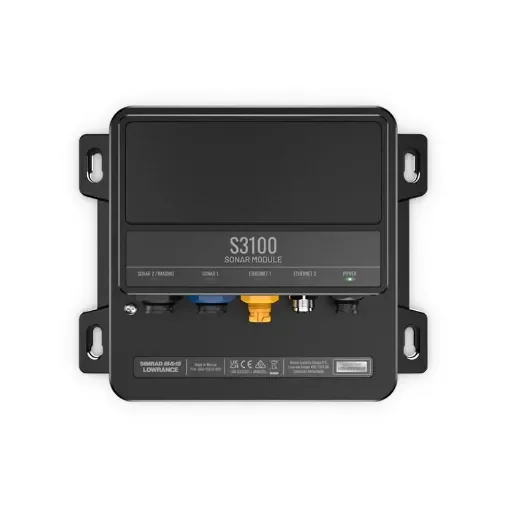

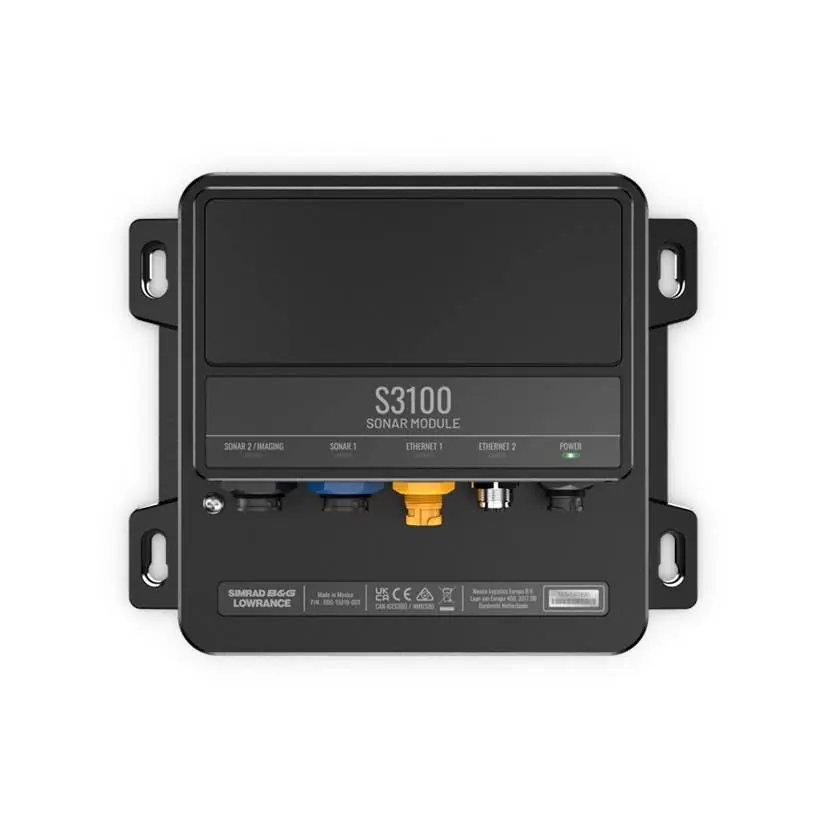

The Lowrance® S3100 Sonar Module enhances your fishing experience by integrating high-definition Active Imaging™ HD sonar capabilities into your Lowrance HDS LIVE, HDS Carbon, and Elite FS displays. This module delivers superior clarity with high-frequency SideScan and DownScan Imaging up to 1 megahertz, providing the clearest images of fish and underwater structures. Additionally, it introduces the FishReveal™ SideScan view, which combines high-frequency SideScan detail with the clarity of Lowrance CHIRP sonar, making fish identification easier on both sides of the boat. The S3100 features two fully independent 1 kW sonar channels, allowing connection to up to two additional transducers to simultaneously track multiple depth ranges. It is compatible with wide-angle transducers for greater coverage and includes 1GB Ethernet capability for seamless integration with your Lowrance system.
- Supports Active Imaging™ HD on HDS LIVE, HDS Carbon, and Elite FS displays
- Provides high-frequency SideScan and DownScan Imaging up to 1 megahertz
- Enables FishReveal™ SideScan view for easier fish identification
- Offers two independent 1 kW sonar channels for tracking multiple depth ranges
- Compatible with wide-angle transducers for enhanced coverage
- Includes 1GB Ethernet capability for seamless integration
Technical Specifications:
- Dimensions: 230 mm (9.04") x 192 mm (7.57") x 79 mm (3.10")
- Weight: 0.9 kg (1.9 lbs)
- Power Consumption: Maximum: 9.6W, Typical: 7.2W
- Supply Voltage: 12 or 24 V DC (10.5 - 31.2 V DC)
- Recommended Fuse Rating: 5A
- Operating Temperature Range: -15° C to 55° C (5° F to 131° F)
- Storage Temperature Range: -20° C to 60° C (4° F to 140° F)
- Waterproof Rating: IPX6
- Sonar Channels: Two independent 1 kW CHIRP sonar channels
- Transducer Compatibility: Supports approved Navico and Airmar 300W-1kW Xsonic Transducers
- Ethernet Ports: 2 x 100 Mbps
The S3100 Sonar Module's housing is manufactured using 50% recycled plastics, reflecting Lowrance's commitment to sustainability.
