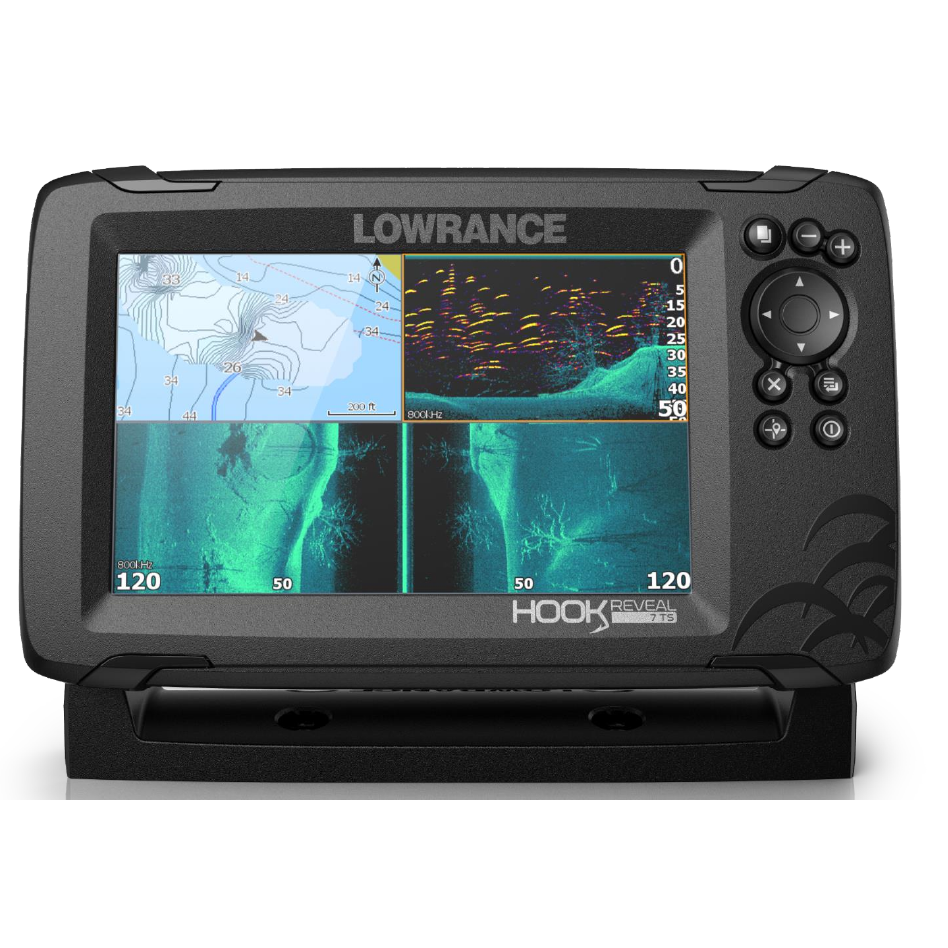

HOOK² 7 REVEAL GPS-FISHFINDER - LOWRANCE
The all-new HOOK² Reveal device makes fishing easier by offering exceptional performance thanks to proven fish detection tools, including:
- automatic settings
- DownScan Imaging™
- FishReveal™, which makes it easier to visualize fish by combining the advantages of the Lowrance CHIRP fishfinder and DownScan Imaging™ on a single screen.
Whether you are fishing in a local spot or in an unknown area, find the best fishing zones with detailed C-Map charts or map unexplored waters in real-time with Genesis Live.
Hook² Reveal 7 inches: 3 versions available
1/ A HOOK² REVEAL fishfinder equipped with a 83/200 and 455/800 transducer This one focuses 2 different technologies, which can be combined on a split screen or on a single screen.
The 2D view in 83/200 for more detail (<150m) and the Down scan with the REVEAL function.2/ A HOOK² REVEAL fishfinder equipped with a 50/200 and 455/800 Khz transducer.
This one focuses 2 different technologies, which can be combined on a split screen or on a single screen.
The 2D view in 50/200 for greater depths (183m) and the Down scan with the REVEAL function.3/ A HOOK² REVEAL fishfinder equipped with a Triple Shot transducer
This model designed specifically for freshwater focuses 3 different technologies, which can be combined on a split screen.
The 2D view in 200 khz for more details (<60m), the Down scan with the REVEAL function and the Side scan to see the structures from a new angle with a wider cone.
2D CHIRP TECHNOLOGY
This technology is primarily used for fish detection.
The frequency ranges are low to medium frequencies (between 50 or 83 and 200 KHz).
The CHIRP 2D technology allows for greater depths than with Down Scan and Structure Scan. You can explore depths of up to 120 m.
DOWN SCAN IMAGING TECHNOLOGY
Frequency ranges between 455 and 800 KHz. The transducer projects a vertical beam, which provides access to a "frontal view" of underwater elements. Thus, if you want to observe a shipwreck, for example, the Down Scan will show you a view of the wreck as if it were facing you.
This beam allows you to clearly distinguish what is directly beneath your boat.
Thanks to Down Scan, you get a clear image of the seabed, and you are especially able to differentiate the various elements present, notably separating fish from structures.
FISH REVEAL TECHNOLOGY
This unique function allows you to overlay fish echoes from the 2D technology onto the Down Scan imaging.You benefit from the advantages of both technologies on a single image, the DownScan Imaging offers a photographic view of the
seabed, while the 2D provides a better fish detection thanks to its wider angle.
TECHNOLOGY
