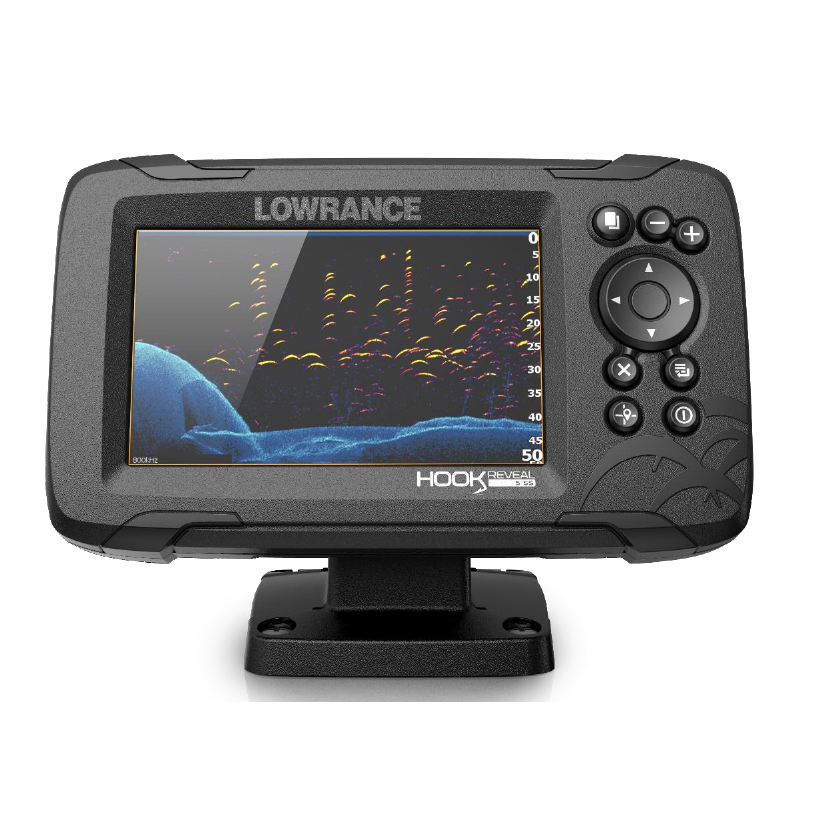

The all-new HOOK² Reveal device makes fishing easier by offering exceptional performance thanks to proven fish detection tools, including :
- automatic settings
- DownScan Imaging™
- FishReveal™, which makes it easier to visualize fish by combining the advantages of the Lowrance CHIRP fishfinder and DownScan Imaging™ on a single screen.
Whether you are fishing in a local spot or in an unknown area, find the best fishing zones with detailed C-Map charts or map unexplored waters in real-time with Genesis Live.
Hook² Reveal: available in two versions
- a version 83/200/455/800 Khz with 2D and Down Scan:
This one combines 2 different technologies, which can be combined on a split screen or on a single screen. The 2D view at 83/200 for more detail and the Down scan with the REVEAL function.
- a version 50/200/455/800 Khz with 2D and Down Scan:
This one combines 2 different technologies, which can be combined on a split screen or on a single screen. The 2D view at 50/200 for greater depths (183m) and the Down scan with the REVEAL function.
2D CHIRP TECHNOLOGY
This technology is primarily used for fish detection.
The frequency ranges are low to medium frequencies (between 50 or 83 and 200 KHz).
The 2D CHIRP technology allows for greater depths than with Down Scan and Structure Scan. You can explore depths of up to 120 m.
Down Scan Imaging Technology
Frequency ranges between 455 and 800 KHz. The transducer projects a vertical beam, which provides access to a "frontal view" of underwater elements. Thus, if you want to observe a shipwreck, for example, the Down Scan will show you a view of the wreck as if it were facing you.
This beam allows you to clearly distinguish what is directly beneath your boat.
Thanks to Down Scan, you get a clear image of the seabed, and you are especially able to differentiate the various elements present, notably separating fish from structures.
Fish Reveal Technology
This unique function allows you to overlay fish echoes from the 2D technology onto the Down Scan imaging.You benefit from the advantages of both technologies on a single image, the DownScan Imaging offers a photographic view of the
seabed, the 2D provides a better fish detection thanks to its wider angle.
