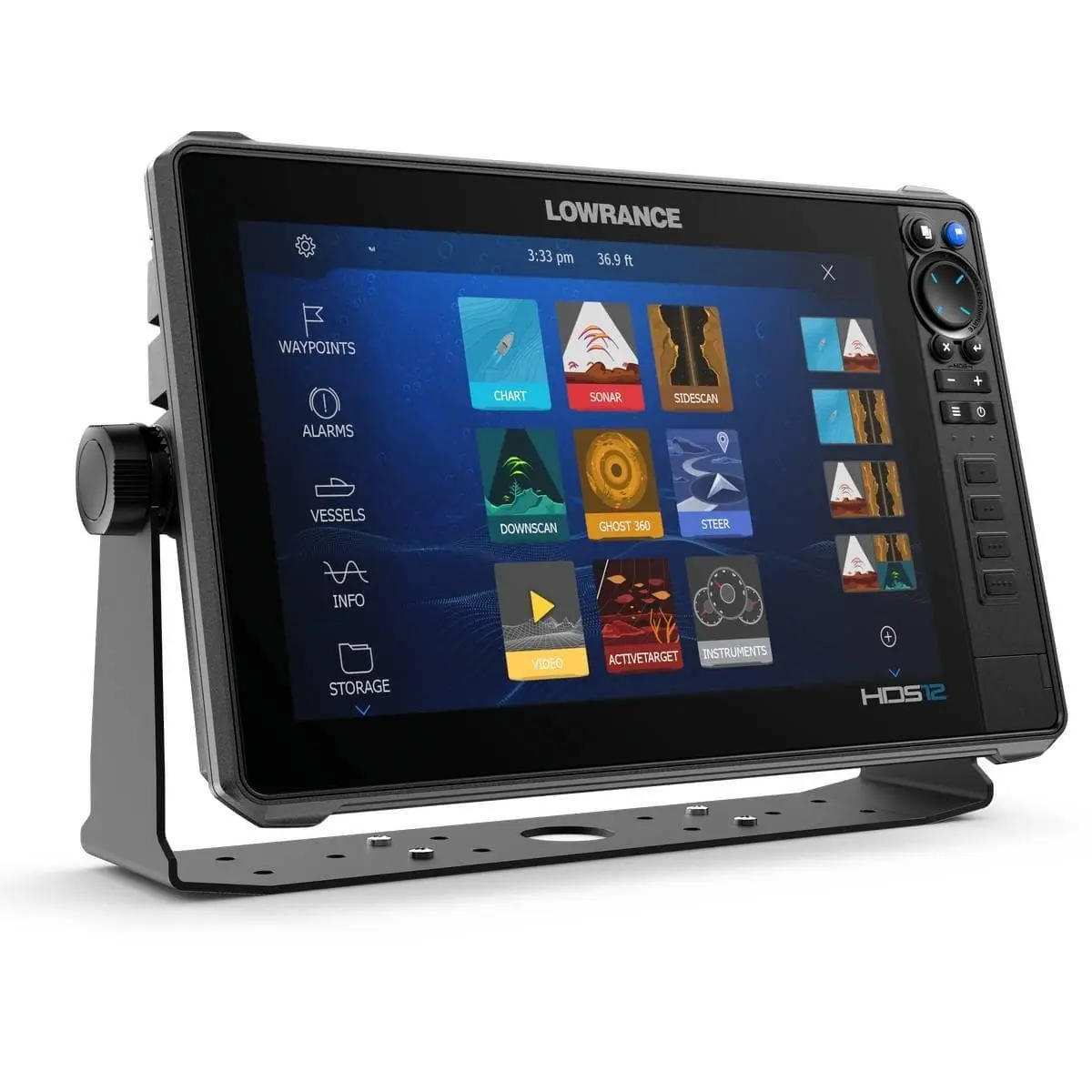

The Lowrance HDS PRO 12 is a state-of-the-art fishfinder/chartplotter designed to enhance your fishing experience with advanced sonar technologies and comprehensive navigation features.
- SolarMAX™ HD Touchscreen: Offers exceptional visibility from any angle, even in direct sunlight and through polarized lenses.
- Active Imaging™ HD: Provides ultra-high-definition sonar imaging, delivering clear views of fish and underwater structures.
- ActiveTarget® 2 Live Sonar: Delivers high-resolution, real-time views of fish movements and structures, allowing anglers to observe fish reactions to lures live.
- FishReveal™: Combines CHIRP sonar and DownScan Imaging™ to make fish identification easier, now available on SideScan as well (requires S3100 module and compatible transducer).
- Preloaded C-MAP® DISCOVER OnBoard Charts: Includes detailed charts with 1-foot contours on over 19,000 U.S. lakes and 9,400 Canadian lakes, facilitating efficient navigation and fishing.
- Connectivity: Features NMEA 2000®, wireless, and Bluetooth® connectivity, enabling integration with various marine devices and smartphone notifications.
- Touchscreen Control: Allows control of compatible devices such as Power-Pole® anchors, Ghost® Trolling Motor, Autopilot, and Lowrance Outboard Pilot directly from the display.
Technical Specifications
- Display:
- Resolution: 1280 x 800 pixels
- Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2 x 100 Mbit, supporting up to 6 MFDs on a network
- Wi-Fi: Internal 802.11b/g/n, compatible with Wi-Fi-1 Module
- NMEA 2000® Connectivity: 1x Micro-C
- GPS:
- Receiver Channels: 16
- Update Rate: 10 Hz
- Position Accuracy: 20m RMS
- Power Consumption:
- Maximum: 3.6A at 13VDC with full backlight, sonar on
- Typical: 2.3A at 13VDC with full backlight, sonar on
- Supply Voltage: 12V DC (10.8-17VDC)
- Environmental:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
- Physical Dimensions:
- Dimensions (L x W x H): 13.68" (347.5 mm) x 9.00" (225.5 mm) x 3.26" (82.9 mm)
- Weight: 5.76 lb (2.61 kg)
- Compass Safe Distance: 12" (300 mm)
- Mounting Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount
Materials
The HDS PRO 12 is constructed with high-quality materials designed for durability and performance in marine environments. Specific material details are not provided in the available sources.
Compatibility Information
- Transducer Compatibility: Compatible with Lowrance Active Imaging™ HD transducers. For FishReveal™ SideScan, an S3100 module and compatible transducer are required.
- Chart Compatibility: Supports a wide range of third-party charts, including C-MAP®, Navionics®, and Florida Marine Tracks.
