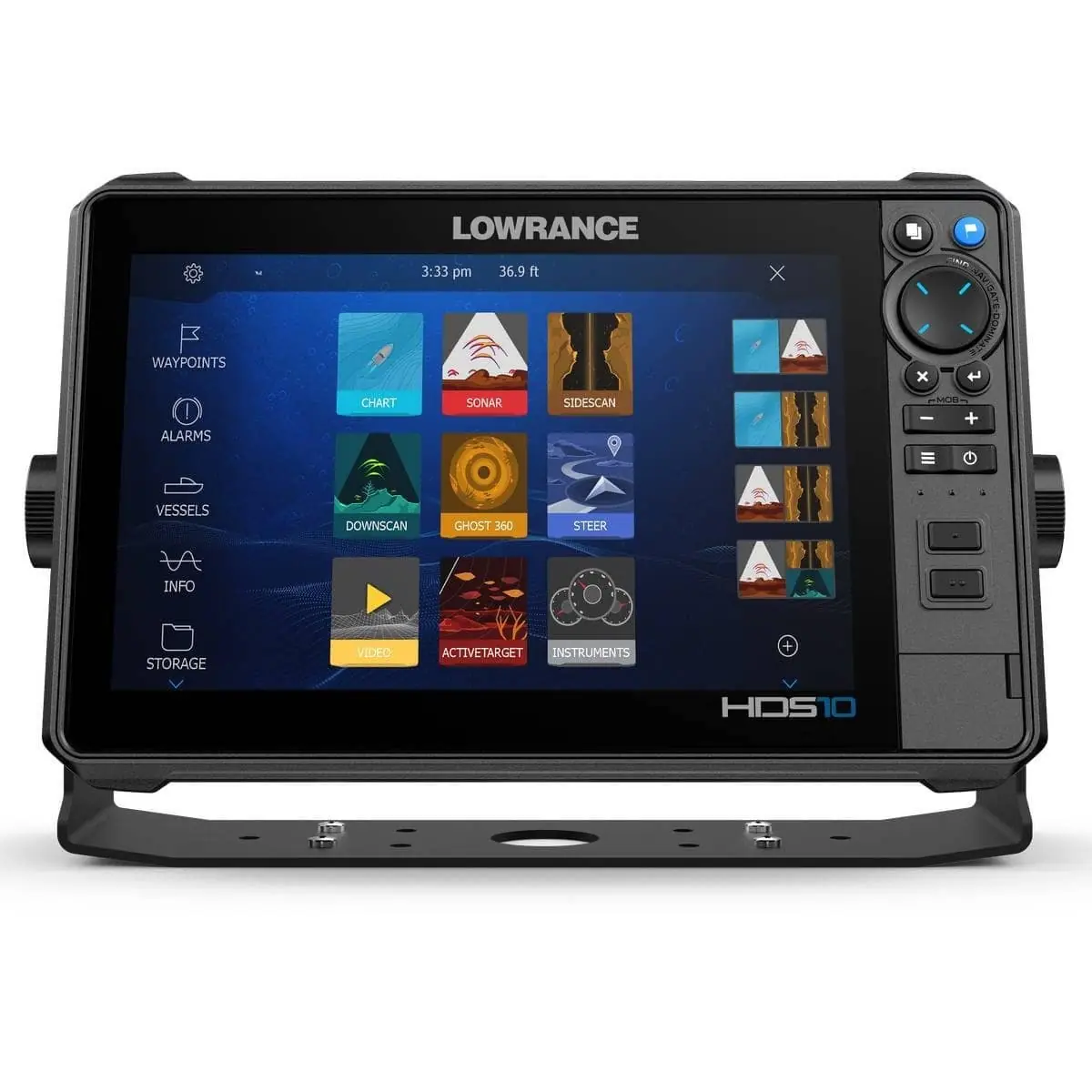

The Lowrance HDS PRO 10 is a state-of-the-art fish finder and chartplotter designed to enhance your fishing experience with advanced sonar and mapping technologies.
- Active Imaging™ HD: Provides high-definition views of Lowrance CHIRP sonar, SideScan, and DownScan Imaging™, delivering clear and detailed images of fish and underwater structures.
- ActiveTarget® 2 Live Sonar Ready: Offers higher-resolution views of fish movement and structure, allowing anglers to observe fish reactions to lures in real-time.
- FishReveal™: Expands to include SideScan and DownScan views, making it easier to identify fish to the sides and beneath the boat.
- Preloaded C-MAP® DISCOVER OnBoard Charts: Features detailed charts with 1-foot contours for over 19,000 U.S. lakes and 9,400 Canadian lakes, facilitating quick location of prime fishing areas.
- SolarMAX™ HD Touchscreen: Ensures clear visibility in all lighting conditions, including direct sunlight and through polarized lenses.
- Full System Networking: Supports NMEA 2000®, wireless, and Bluetooth® connectivity, enabling integration with various marine devices and systems.
Technical Specifications
- Display:
- Screen Size: 10 inches
- Resolution: 1280 x 720 pixels
- Type: Touchscreen with physical keys
- Backlight: Pure white LED
- Viewing Angles: 80° top/bottom, 80° left/right
- Sonar:
- Active Imaging™ HD
- ActiveTarget® 2 Live Sonar Ready
- FishReveal™
- CHIRP Sonar
- SideScan and DownScan Imaging™
- Connectivity:
- NMEA 2000®
- Bluetooth® 4.0
- Wi-Fi (Internal 802.11b/g/n)
- Ethernet Ports: 2 x 100 Mbit
- SD Card Storage: 2 micro SD cards up to 32GB
- Electrical:
- Supply Voltage: 12V DC (10.8-17V DC)
- Power Consumption: 2.0A @ 13V DC with full backlight and sonar on
- Recommended Fuse Rating: 3A
- Environmental:
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Storage Temperature Range: -20°C to 60°C (4°F to 140°F)
- Waterproof Rating: IPX7 with card door closed
- GPS:
- Receiver Channels: 16
- Update Rate: 10 Hz
- Correction: DGPS, WAAS
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Physical Dimensions:
- Dimensions: 29.46 cm x 19.31 cm x 8.26 cm (11.06" x 7.6" x 3.3")
- Weight: 1.66 kg (3.66 lbs)
Materials
The HDS PRO 10 is constructed with high-quality materials designed for durability and performance in marine environments. The device features a robust housing to withstand harsh conditions, and the SolarMAX™ HD touchscreen is engineered for clarity and resilience.
Compatibility Information
- Transducer Compatibility:
- Active Imaging™ HD transducer (part number: 000-16062-001)
- ActiveTarget® 2 Live Sonar system
- FishReveal™ requires S3100 module and compatible transducer
- Networking and Integration:
- NMEA 2000®
- Bluetooth® 4.0
- Wi-Fi (Internal 802.11b/g/n)
- Ethernet Ports: 2 x 100 Mbit
- SD Card Storage: 2 micro SD cards up to 32GB
