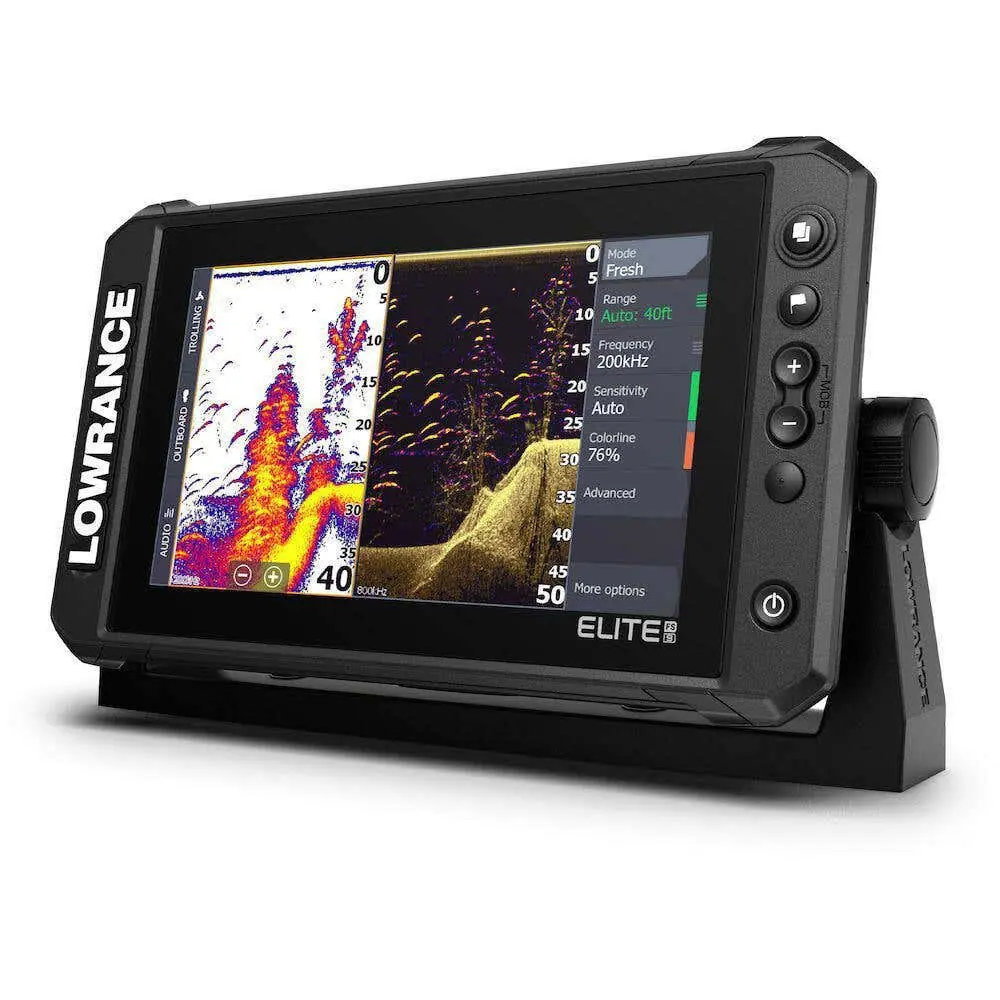

The Lowrance Elite FS 9 GPS Fish Finder is a cutting-edge device designed to enhance your fishing experience with advanced sonar technology, intuitive navigation, and seamless device integration. Ideal for both amateur and professional anglers, this fish finder offers a comprehensive suite of features to locate and target fish with precision.
- ActiveTarget™ 2 Live Sonar Ready: Provides real-time, high-resolution views of fish movements, allowing anglers to track fish as they swim in and around cover.
- Active Imaging™ 3-in-1 Ready: Delivers refined detail and unmatched range with CHIRP, SideScan, and DownScan Imaging™, helping to pinpoint fish-holding areas such as weedbeds, ditches, rockpiles, standing timber, and drop-offs.
- FishReveal™: Combines the target identification of CHIRP sonar with the high-quality bottom and structure images of DownScan Imaging™, making it easier to recognize fish from structure and cover on high-detailed DownScan images.
- Preloaded Worldwide Basemap: Features a preloaded worldwide basemap with upgrade options, including C-MAP®, Navionics®, and more, providing comprehensive mapping capabilities.
- Integrated Wireless, NMEA 2000®, and Ethernet Connectivity: Allows for seamless integration with other onboard devices, enhancing the overall boating experience.
- Full Touchscreen Control: Offers full touchscreen control of Power Pole® anchors, and Ghost® Trolling Motor, providing ease of use and functionality.
Technical Specifications
- Display: 9 inches, 800 x 480 pixels, Pure White LED backlight, >1200 nits brightness, 50° top, 60° bottom, 70° left/right viewing angles.
- Connectivity: Integrated Bluetooth 4.0, 1 x 100Mbit Ethernet port, Internal 802.11b/g/n Wi-Fi, 1x Micro-C NMEA 2000, 1 micro SD card up to 32GB.
- Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, Active Imaging SideScan; compatible with SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target.
- GPS: DGPS, WAAS, MSAS, EGNOS, GLONASS, 16 channels, 20m RMS accuracy, 30s time to first fix, 10 Hz update rate.
- Electrical: Max power consumption 2.0A @ 13VDC, 12v DC supply voltage (10.8-17VDC), recommended fuse rating 3A.
- Environmental: Operating temperature range 5°F to 131°F (-15°C to 55°C), storage temperature range 4°F to 140°F (-20°C to 60°C), waterproof rating IPX7 with card door closed.
- Physical: Weight 2.7 lbs (1.2 kg), mounting type Gimbal Bracket or Dash Flush Mount, compass safe 12" (300mm).
Materials
The Lowrance Elite FS 9 GPS Fish Finder is constructed with high-quality materials designed to withstand the rigors of marine environments. The device features a durable housing with an anti-glare coating on the screen, ensuring longevity and optimal performance.
Compatibility Information
- Chart Options: Compatible with a wide range of charts, including C-MAP® (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics® (Gold, NAV+, Platinum+), Insight (Pro and HD), and Lowrance Regional Mapping Partners.
- Sonar Compatibility: Compatible with various sonar modules and transducers, including SonarHub, StructureScan, StructureScan 3D, LiveSight, and Active Target.
