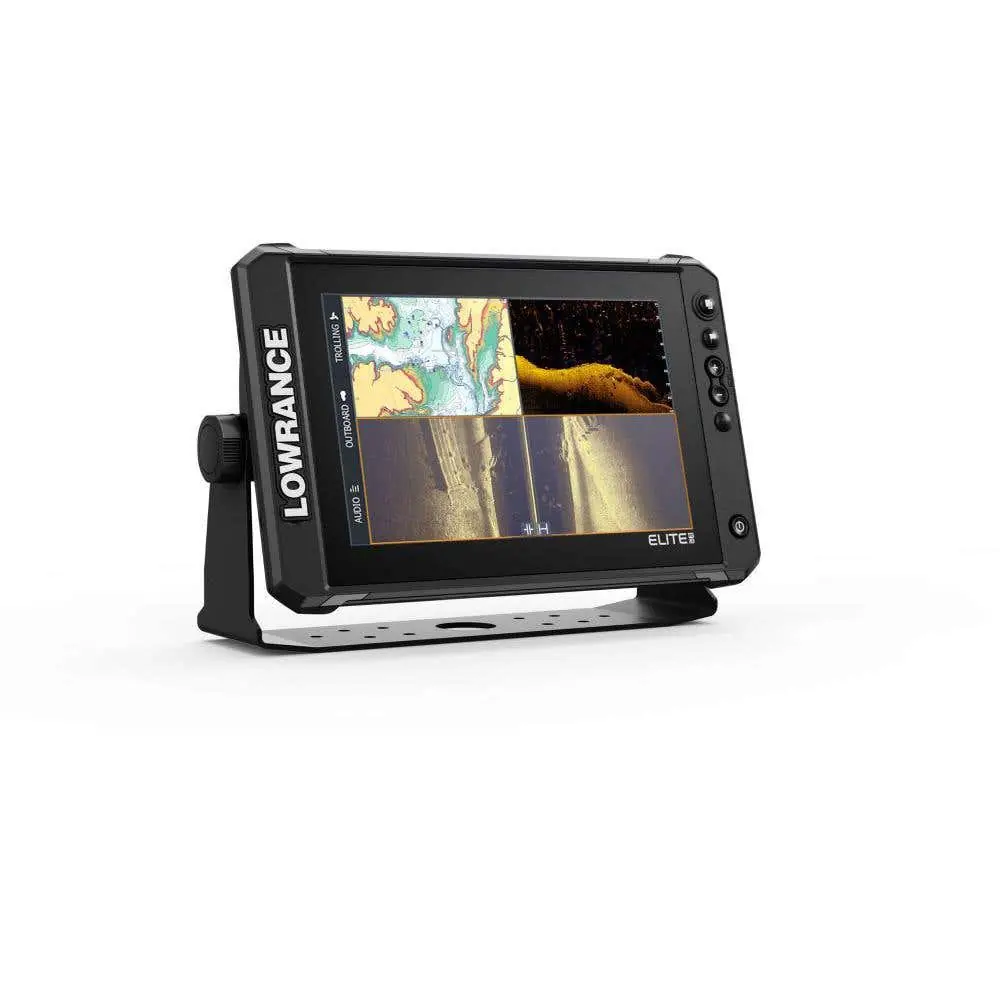

The Lowrance Elite FS 10 Fish Finder/Chartplotter is a comprehensive navigation and fish detection system designed for boating and fishing enthusiasts. It integrates advanced sonar technologies, a high-resolution touchscreen, and versatile connectivity options to enhance your on-water experience.
- ActiveTarget™ 2 Live Sonar Compatibility: Provides real-time, high-resolution views of fish movements, allowing anglers to observe fish behavior and adjust techniques accordingly.
- Active Imaging™ 3-in-1 Sonar: Combines CHIRP sonar, SideScan, and DownScan Imaging™ with FishReveal™, offering detailed views of underwater structures and fish targets.
- Preloaded C-MAP® DISCOVER™ OnBoard Charts: Features high-resolution inland and coastal charts with 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada, aiding in precise navigation and fishing spot identification.
- High-Resolution Multi-Touch Display: The 10-inch screen offers intuitive operation and clear data display, even in bright sunlight.
- Integrated Connectivity: Supports wireless, NMEA 2000®, and Ethernet connections for seamless integration with other onboard equipment.
Technical Specifications
- Display: Resolution: 1280 x 800 pixels, Viewing Angle: 85° top/bottom, 85° left/right, Brightness: >1200 nits, Touchscreen: Multi-touch
- Physical: Weight: 1.66 kg (3.66 lbs), Compass Safe Distance: 65 cm (2.1 ft)
- Environmental: Operating Temperature Range: -15°C to +55°C (5°F to 131°F), Storage Temperature: -20°C to +60°C (4°F to 140°F), Waterproof Rating: IPX6 and IPX7
- Electrical: Supply Voltage: 12 V DC (10 – 17 V DC), Recommended Fuse Rating: 3 Amps, Power Consumption Maximum: 34.5 W (2.5 A at 13.8 V DC)
- Interface/Connectivity: NMEA 2000: 1 port (Micro-C connector), Data Card Reader: 1x slot (microSD, SDXC), Ethernet: 1 port (5-pin Ethernet connector, 100Base-T), Sonar: 1 port (9-pin connector), Wi-Fi Internal: 802.11b/g/n (no wireless networking between units), Bluetooth: 4.0 with support for Bluetooth® Classic, GPS: 10Hz high-speed update WAAS, MSAS, EGNOS
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
Compatibility Information
- Transducer Options: Active Imaging™ 3-in-1, Active Imaging™ HD 3-in-1 (requires S3100 Sonar Module), ActiveTarget™ 2 Live Sonar, TotalScan
- Chart Options: C-MAP® DISCOVER™ OnBoard, Navionics®, C-MAP Genesis Live
