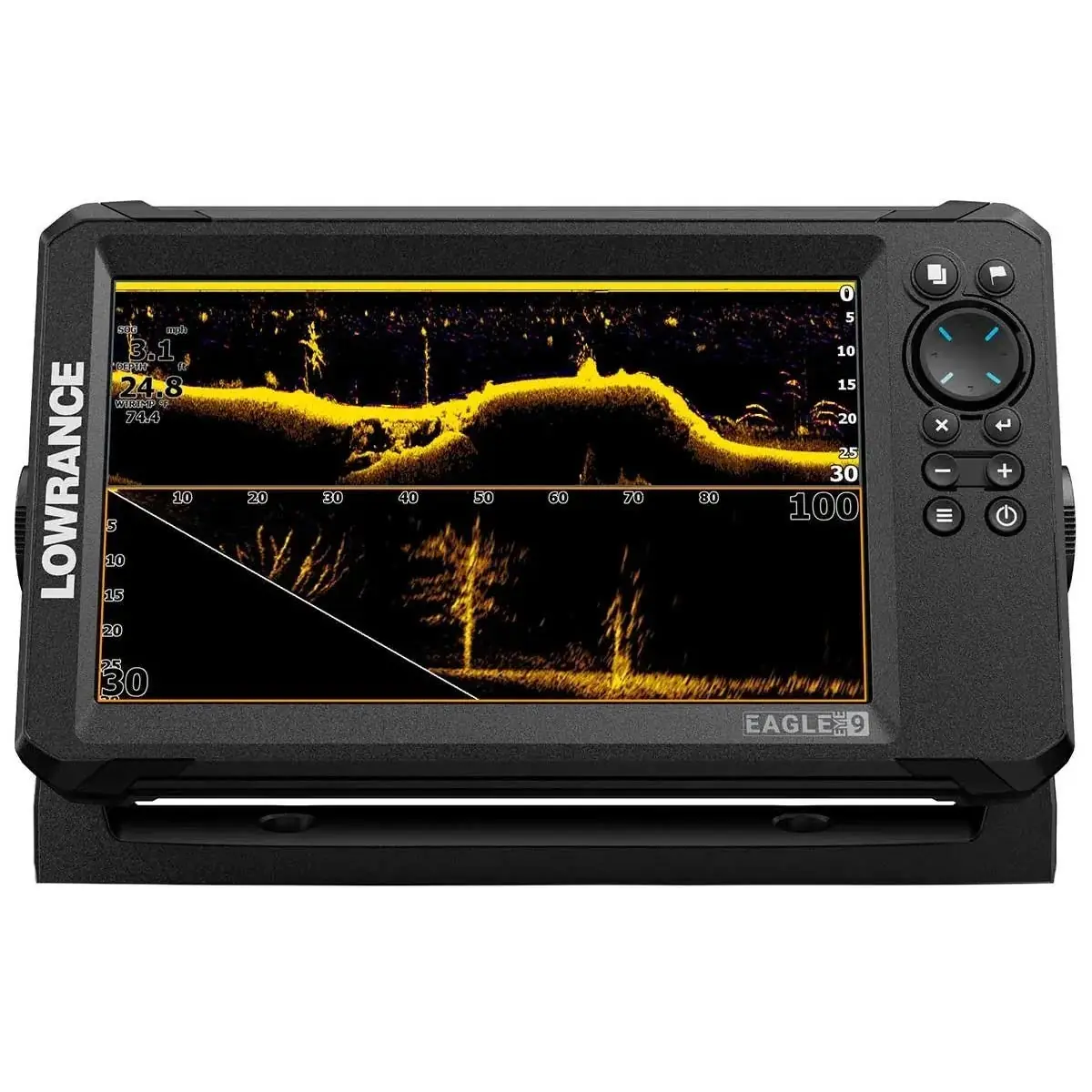

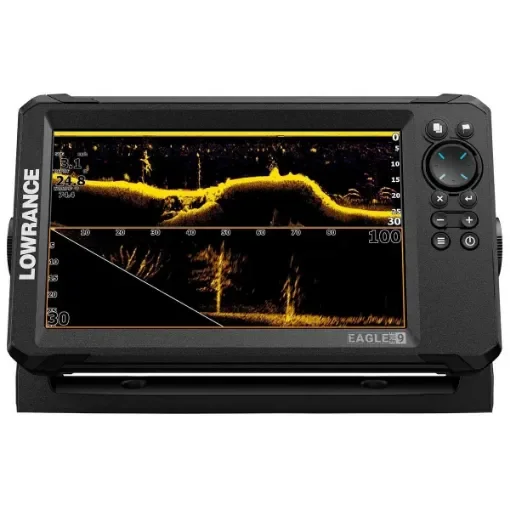

The Eagle Eye™ 9 Live is Lowrance's most accessible fish finder equipped with live sonar capabilities. It combines focused forward and down live sonar with CHIRP and DownScan Imaging™ featuring FishReveal™, all integrated into a single transducer. The device boasts a crystal-clear 9-inch IPS display, ensuring high-resolution imaging and visibility from all angles, even when viewed through polarized lenses.
- Live Sonar: Provides real-time views of fish reactions to your lure, enhancing fishing precision.
- CHIRP Sonar: Delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.
- DownScan Imaging™ with FishReveal™: Offers photo-like images of underwater structures and fish, aiding in precise fish identification.
- C-MAP® DISCOVER™ OnBoard™: Includes detailed charts for the US and Canada, facilitating efficient navigation to optimal fishing spots.
- Genesis® Live: Allows creation of custom ½-foot contour maps of local or uncharted waters in real-time.
- Autotuning Sonar: Automatically adjusts settings for optimal performance, reducing manual configuration.
- IPS Display: Ensures clear visibility from all angles, even in direct sunlight or when wearing polarized sunglasses.
- Twist-Lock Connector System: Simplifies installation and removal, compatible with various boats and kayaks.
- SD Card Slot: Supports software updates, Genesis Live recording, and charting add-ons.
Technical Specifications
- Display: 9 inches, 1024 x 600 resolution, 1000 NITS brightness, 85° viewing angles.
- Connectivity: 1 microSD® slot (32 GB maximum).
- Electrical: 650 mA @ 12 V DC power consumption, 12V DC supply voltage, 3A recommended fuse rating.
- Environmental: Operating temperature range of 5°F to 131°F, waterproof rating IPX7.
- GPS: SBAS correction, 45s time to first fix.
- Physical: Dimensions 287.2 mm x 162.5 mm x 90 mm, weight 0.9 kg, mounting type gimbal bracket or dash mount.
- Other: 8-way directional keypad, 1-year warranty with 4 additional years of upgrade options.
The Eagle Eye™ 9 Live is constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
