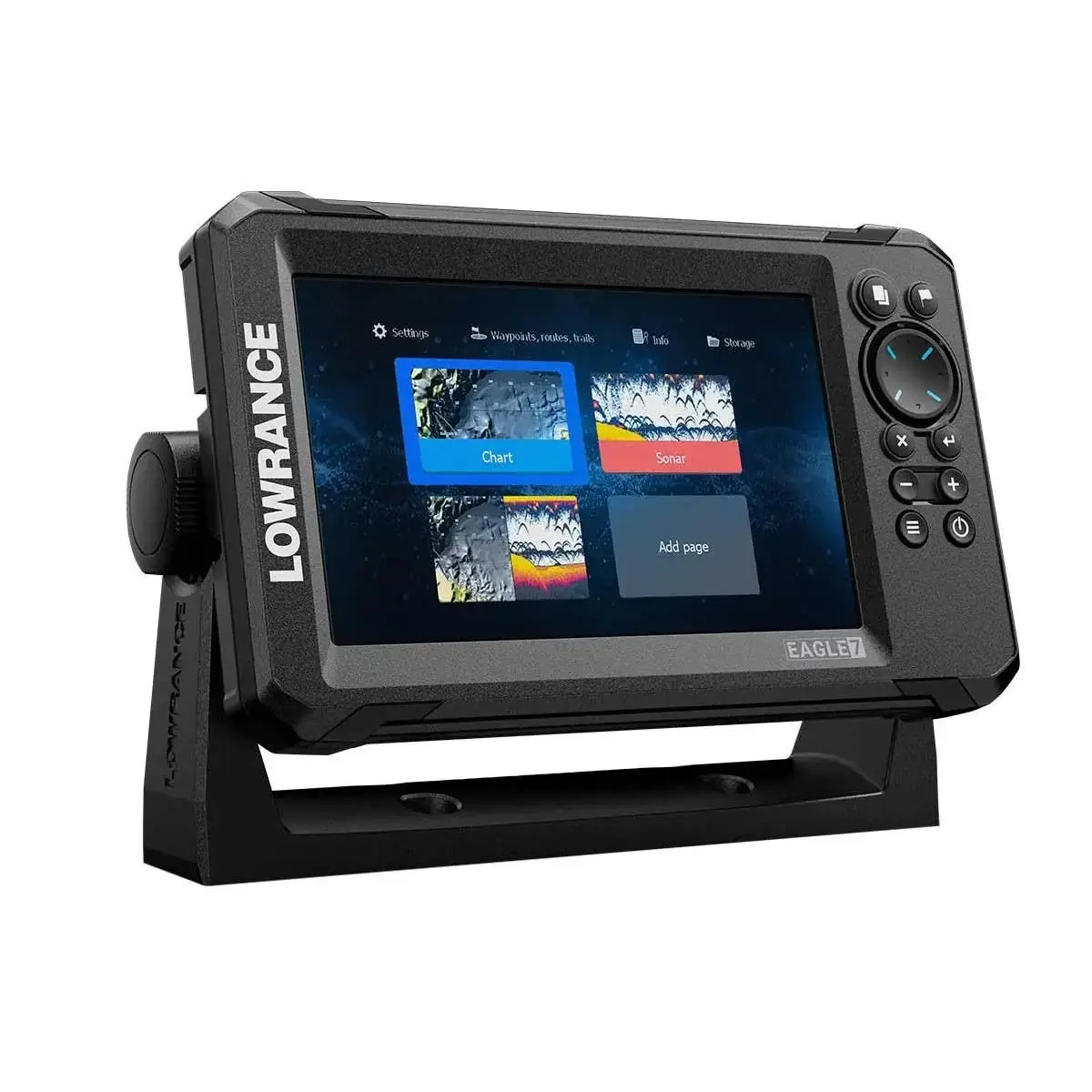

The Lowrance Eagle 7 Fishfinder is engineered to simplify fishing, offering advanced sonar capabilities, intuitive design, and comprehensive mapping tools. It features the newly designed TripleShot™ HD Transducer, providing underwater views to the side and below the boat, combining wide-angle high CHIRP sonar with high-resolution images from SideScan and DownScan Imaging™.
- TripleShot™ HD Transducer: Delivers wide-angle high CHIRP sonar, SideScan, and DownScan Imaging™, offering comprehensive underwater views.
- FishReveal™ Technology: Combines DownScan Imaging with CHIRP sonar for superior target separation and identification.
- Autotuning Sonar: Automatically adjusts settings for optimal performance, reducing manual configuration.
- IPS Display: 7-inch screen with 800 x 480 resolution, 1000 NITS brightness, and wide viewing angles, ensuring clear visibility from all angles, even in direct sunlight.
- Worldwide Basemap: Pre-loaded with a global basemap, with the option to upgrade to C-MAP® DISCOVER™ for detailed inland and coastal charts.
- Genesis Live: Create custom ½-foot contour maps of local lakes or uncharted waters in real-time.
- Twist-Lock Connector System: Facilitates easy installation and removal on any boat or kayak.
- SD Card Slot: Supports software updates, Genesis Live recording, and additional charting options.
Technical Specifications
- Display: 7 inches, 800 x 480 resolution, 1000 NITS brightness, 80° viewing angles.
- Connectivity: 1 microSD® slot (32 GB maximum), supports C-MAP® DISCOVER™.
- Electrical: 550 mA @ 12 V DC, 12V DC supply voltage, 3A recommended fuse rating.
- Environment: Operating temperature range 5°F to 131°F, waterproof rating IPX7.
- GPS: SBAS correction, 45s time to first fix.
- MFD: 3000 waypoints, 100 routes, 100 trails.
- Physical: Dimensions 225.9 mm x 139.8 mm x 88.5 mm, weight 0.67 kg.
The Eagle 7 Fishfinder is compatible with various transducers, including the TripleShot™ HD, SplitShot™ HD, 83/200 HDI, and 50/200 HDI models, catering to different fishing needs and water depths.
