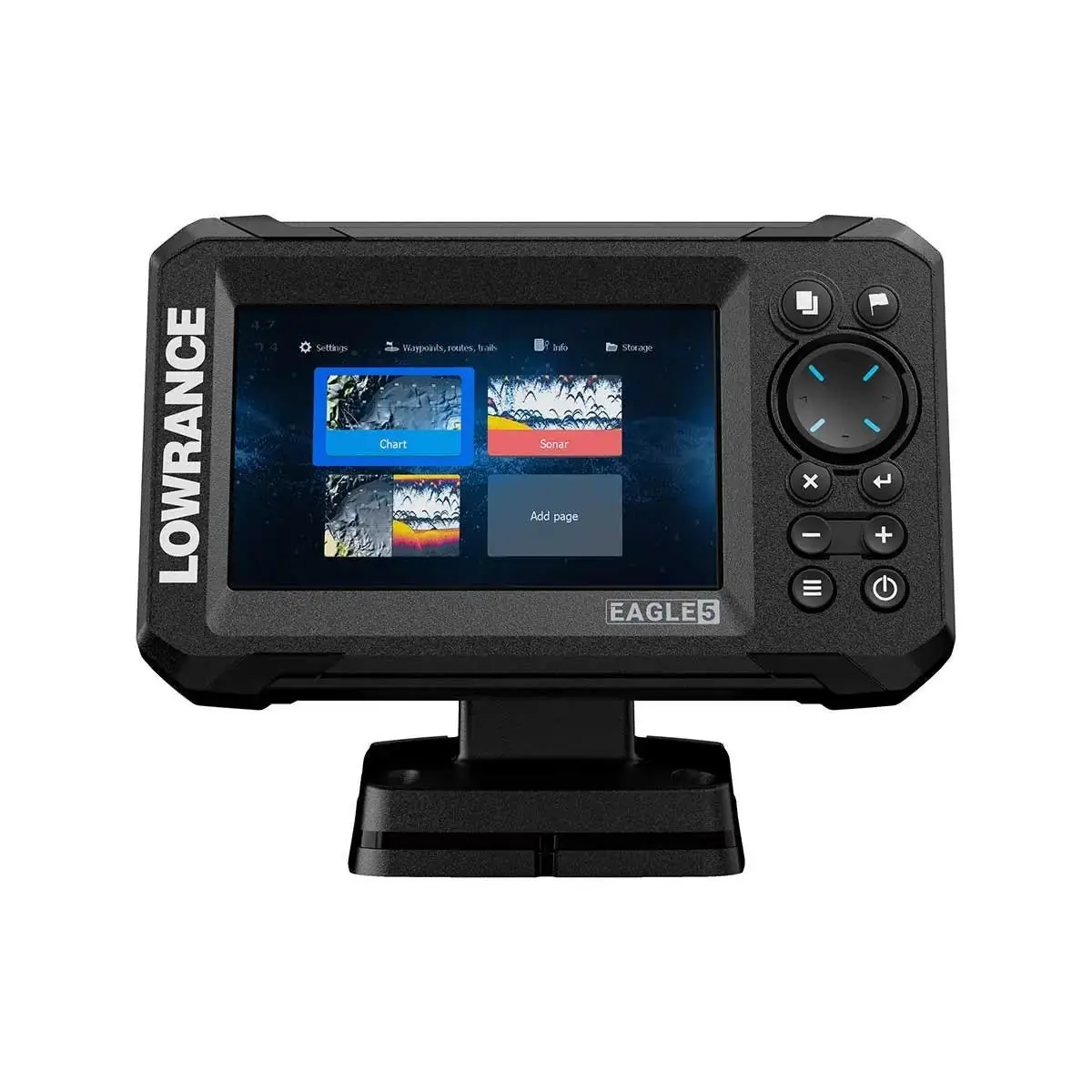

The Lowrance Eagle 5 Fish Finder/Chartplotter Combo is engineered to enhance your fishing experience with advanced sonar and navigation technologies. This model features a 5-inch IPS display, providing superior resolution and visibility from all angles, even under direct sunlight. It comes pre-loaded with a worldwide basemap chart and offers the option to upgrade to C-MAP® DISCOVER™ for detailed navigation.
- Display: 5-inch IPS screen with a resolution of 800 x 480 pixels, offering 1000 NITS brightness and 80° viewing angles horizontally and vertically.
- Sonar Technologies:
- CHIRP Sonar: Delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.
- DownScan Imaging™: Provides photo-like images of underwater structures directly beneath the boat, aiding in the identification of fish-holding structures.
- FishReveal™: Combines DownScan Imaging with CHIRP sonar for unparalleled target separation and identification.
- Autotuning Sonar: Automatically adjusts settings to provide optimal sonar performance without manual intervention.
- Transducer Options:
- 50/200 HDI Transducer: Ideal for deep-water fishing, offering low and high-frequency CHIRP sonar with DownScan Imaging.
- 83/200 HDI Transducer: Suitable for both freshwater and saltwater fishing, providing medium and high-frequency CHIRP sonar with DownScan Imaging.
- SplitShot™ HD Transducer: Combines wide-angle high CHIRP sonar with DownScan Imaging for comprehensive underwater views.
- Charting and Mapping:
- C-MAP® DISCOVER™: An optional upgrade offering detailed charts for inland and coastal areas.
- Genesis Live: Allows the creation of custom ½-foot contour maps of local lakes or uncharted waters in real-time.
- Connectivity:
- SD Card Slot: Supports microSD cards up to 32 GB for software updates, charting add-ons, and data storage.
- NMEA 0183: Provides connectivity for external devices.
- Environmental Specifications:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C).
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C).
- Waterproof Rating: IPX7, ensuring protection against water ingress.
- Physical Dimensions:
- Display Dimensions: 182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 mm (4.35").
- Weight: Approximately 0.46 kg (1.01 lb).
