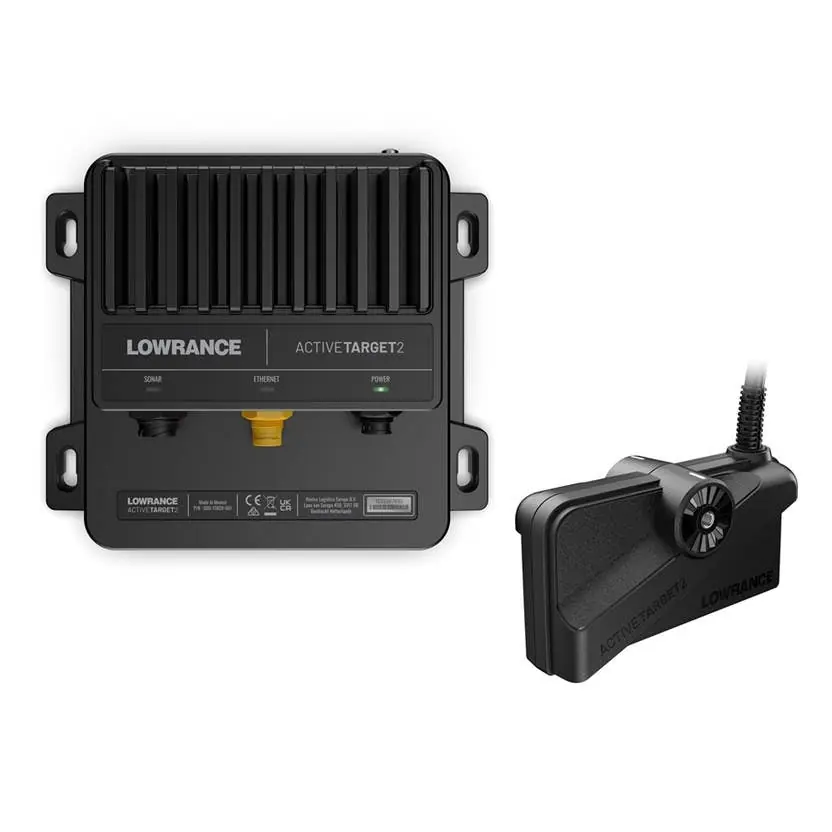

The ActiveTarget 2 Live Sonar system by Lowrance offers the highest-resolution, clearest, and widest live views of fish and underwater structures. By observing fish interactions with your lure in real-time, you can make swift adjustments to enhance your fishing success.
Key Features:
- High-Resolution Live Imaging: Provides crisp and clear live-action views of fish and structures, even in challenging conditions.
- Multiple Viewing Modes:
- Forward View: Displays fish and structures ahead of your boat for precise targeting.
- Down View: Offers detailed views directly beneath your boat, aiding in accurate lure placement.
- Scout View: Presents an ultra-wide, overhead perspective of the area in front of your boat, ideal for locating bait balls and large schools of fish.
- Simultaneous Multiple Views: With an optional second ActiveTarget 2 transducer, you can monitor multiple views simultaneously, including Forward + Back and Scout Wide, providing a 180-degree image for more effective tracking of fish and bait ahead of the boat.
- Optimized Image and Stabilization Settings: Delivers sharp and clear real-time views of fish and structures, even in rough conditions.
- Real-Time Fish Interaction Tracking: Allows you to observe fish responding to your lure in real-time, enabling quick adjustments to your fishing technique.
- Comprehensive Underwater Imaging: Captures a wider section of the water column, transmitting live images for a more complete understanding of underwater activity.
Technical Specifications:
Connectivity:
- Ethernet Port: 1 × 100 Mbit Ethernet Port
Electrical:
- Power Consumption (Max): 1.5A @ 13.8VDC
- Power Consumption (Typical): 1.5A @ 13.8VDC
- Recommended Fuse Rating: 3A
- Supply Voltage: 10.8 VDC – 31.2 VDC
Environmental:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Shock and Vibration: 100,000 cycles of 20 G
- Waterproof Rating: IP67
Physical Dimensions:
- Module:
- Dimensions (W x H x D): 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)
- Weight: 4.12 lbs (1.86 kg)
- Transducer:
- Dimensions (W x H x D): 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
- Weight: 2.67 lbs (1.21 kg)
Mounting Type:
- Module: Surface Mount
- Transducer: Bracket Mount
Compatibility:
- Compatible with Lowrance HDS PRO, HDS LIVE, HDS Carbon, and Elite FS fish finder/chartplotters.
Materials:
The ActiveTarget 2 system is constructed with durable materials designed to withstand harsh marine environments, ensuring longevity and reliable performance.
Warranty:
The ActiveTarget 2 system comes with a 1-year warranty, plus 4 additional years of upgrade options, totaling 5 years.
