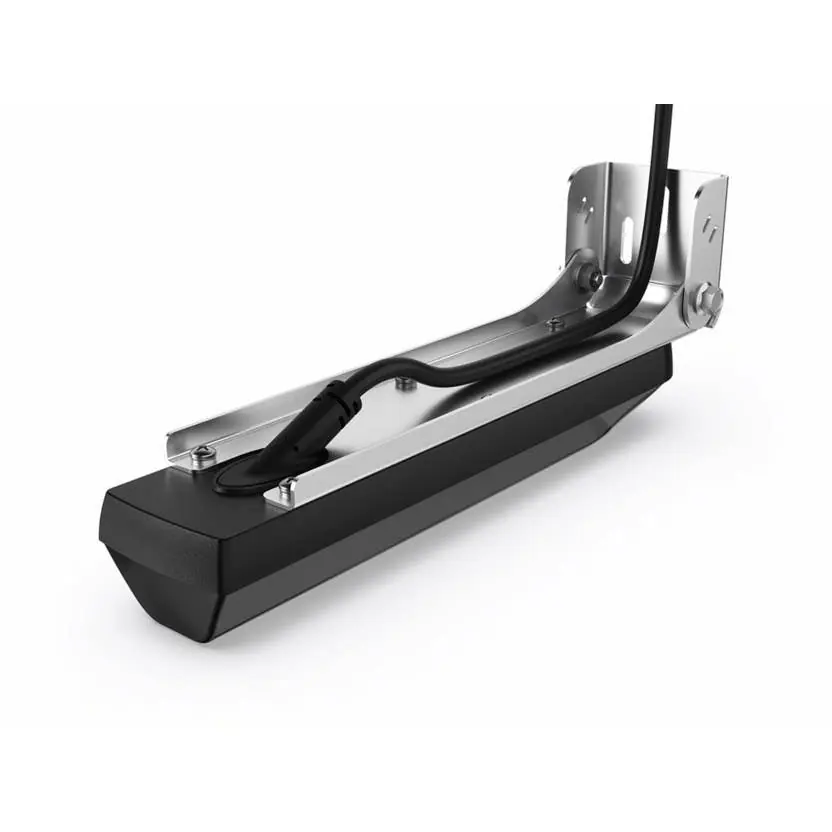

The Lowrance Active Imaging HD 3-in-1 Transducer is a high-definition sonar device designed to provide exceptional clarity and target separation for anglers. It integrates three advanced sonar technologies:
- CHIRP Sonar: Delivers clear visuals of fish, structures, and the bottom, even when targets are close to the bottom or suspended in tight schools.
- SideScan HD Imaging: Offers views up to 60 meters on either side of the boat, enabling efficient search of large areas and visualization of shallow regions near the shore.
- DownScan HD Imaging: Provides nearly photographic-quality images of underwater structures directly beneath the boat, aiding in the identification of fish relative to structures.
An exclusive feature, FishReveal™, combines CHIRP sonar and DownScan Imaging on a single screen, facilitating easy identification of fish among structures and covered areas.
Technical Specifications:
- SideScan Frequencies: Low CHIRP at 455 kHz (445-495 kHz); High CHIRP at 1075 kHz (1065-1115 kHz)
- DownScan Frequencies: Low CHIRP at 700 kHz (690-740 kHz); High CHIRP at 1200 kHz (1190-1240 kHz)
- Supported CHIRP Signals: Medium and High frequencies at 83/200 kHz
- Maximum SideScan Range: Up to 150 feet at high frequency
- Maximum DownScan Range: Up to 300 feet at 455 kHz
- Compatibility: Directly compatible with Lowrance HDS PRO; requires S3100 sonar module for HDS LIVE, HDS Carbon, and Elite FS
- Mounting Type: Transom
- Weight: 1.21 kg (2.67 lbs)
