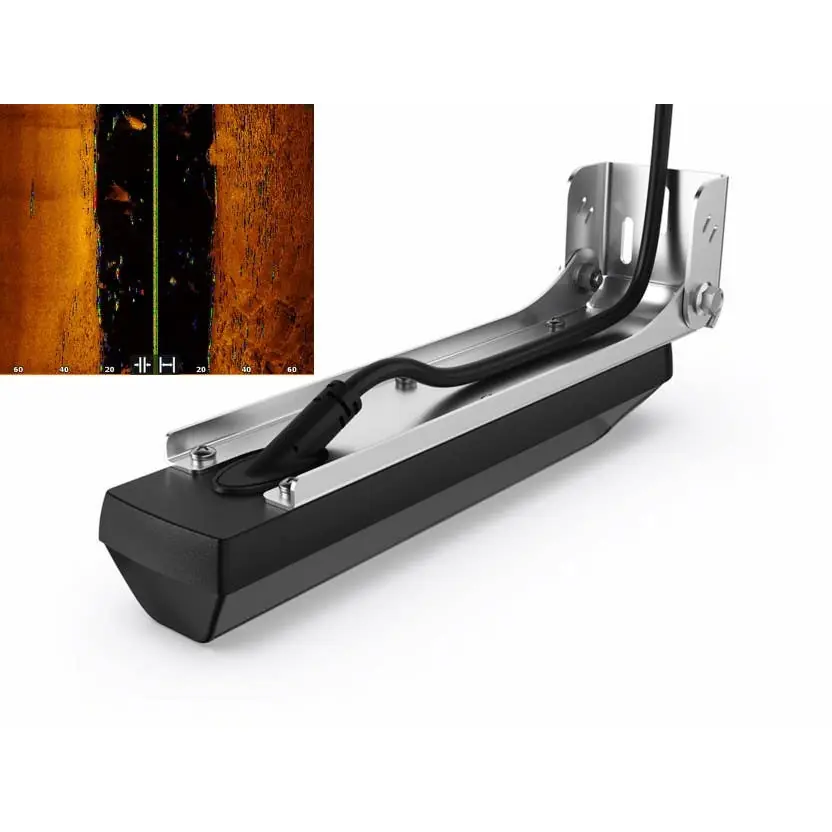

The Active Imaging HD 3-in-1 FishReveal Transducer by Lowrance offers unparalleled clarity for freshwater fishing enthusiasts. This advanced sonar system integrates three key technologies:
- CHIRP Sonar: Provides exceptional clarity and target separation, allowing for precise visualization of fish, structures, and the bottom, even in challenging conditions.
- SideScan Imaging: Delivers high-definition views up to 60 meters on each side of the boat, enabling efficient exploration of large areas and identification of fish-holding structures such as rock piles, standing timber, and weed beds.
- DownScan Imaging: Offers near-photographic quality images of underwater structures directly beneath the boat, facilitating easy identification of fish relative to structures like rocks, trees, and bottom composition.
An exclusive feature, FishReveal™, combines CHIRP sonar and DownScan Imaging on a single display, simplifying fish identification among structures and cover. This feature is available for both SideScan and DownScan views, enhancing the overall fishing experience.
Technical Specifications
- SideScan Frequencies: Low CHIRP: 455 kHz (445-495 kHz), High CHIRP: 1075 kHz (1065-1115 kHz)
- DownScan Frequencies: Low CHIRP: 700 kHz (690-740 kHz), High CHIRP: 1200 kHz (1190-1240 kHz)
- Range: High Frequency: Up to 150 feet, Low Frequency: Up to 300 feet
- Compatibility: Direct connection to Lowrance HDS PRO displays. Requires S3100 Sonar Module for compatibility with HDS LIVE, HDS Carbon, and Elite FS displays.
- Installation Type: Transom mount
- Weight: Approximately 1.21 kg (2.67 lbs)
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Storage Temperature Range: -30°C to 70°C (-22°F to 158°F)
- Waterproof Rating: IP67
- Warranty Period: 1 year, with options for extended coverage up to 5 years
