Key Features:
- High-Definition Imaging: Delivers up to 1.2 MHz SideScan and DownScan Imaging™, providing clear images of fish and underwater structures.
- CHIRP Sonar: Offers enhanced clarity and target separation, allowing visualization of individual fish targets.
- FishReveal™ Technology: Combines CHIRP sonar and DownScan Imaging™ on a single screen, simplifying fish identification.
- SideScan HD Imaging: Ideal for searching large areas, providing views up to 60 meters on each side of the boat.
- DownScan HD Imaging: Offers near-photographic quality images of underwater structures directly beneath the boat.
Technical Specifications:
- SideScan Frequencies:
- Low CHIRP: 455 kHz (445-495 kHz)
- High CHIRP: 1075 kHz (1065-1115 kHz)
- DownScan Frequencies:
- Low CHIRP: 700 kHz (690-740 kHz)
- High CHIRP: 1200 kHz (1190-1240 kHz)
- Range:
- High Frequency: Up to 150 ft
- Low Frequency: Up to 300 ft
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
- Waterproof Rating: IP67
- Weight: 2.67 lbs (1.21 kg)

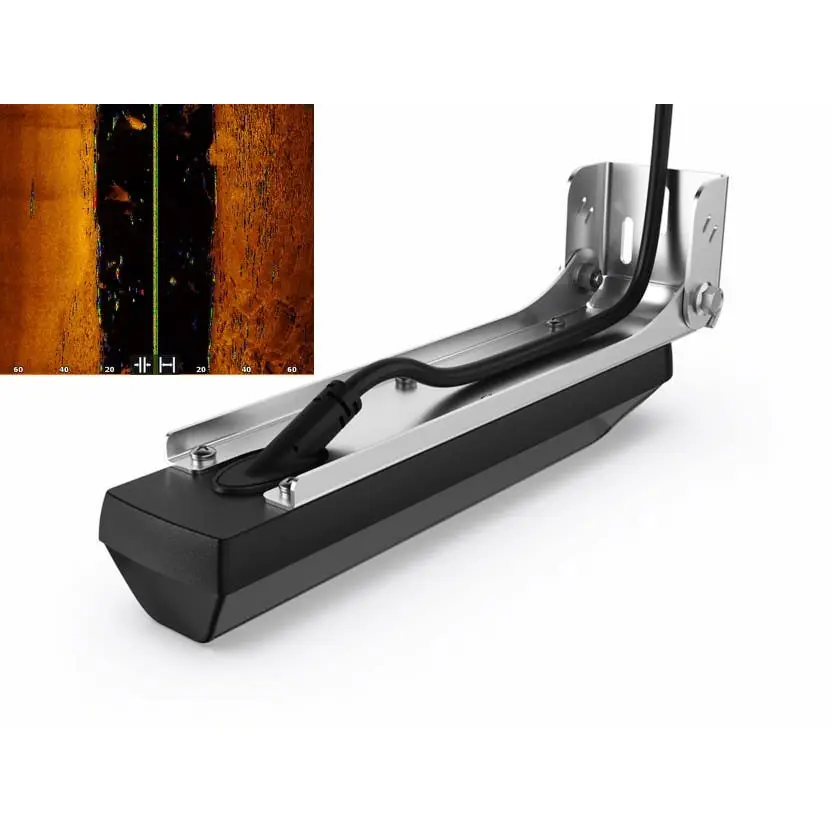

- Mounting Type: Transom Bracket Mount
- Compatibility:
- Direct Connect: HDS PRO
- Requires S3100 Sonar Module: HDS LIVE, HDS Carbon, Elite FS
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance.
Dimensions: Specific dimensions are not provided in the available sources.
