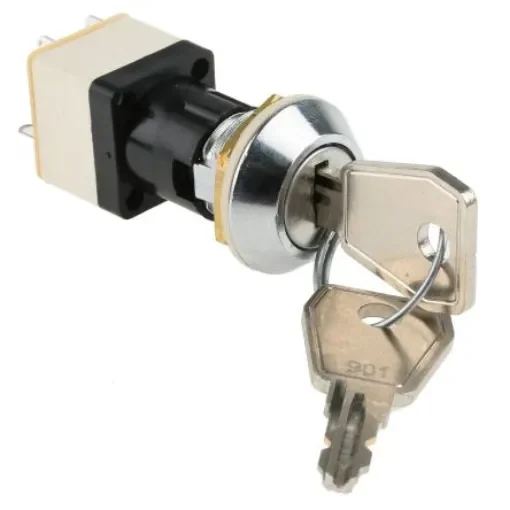

Lorlin IP67 Key Switch, DPST, 4 A @ 250 V ac 2-Way - WRLM-5-S-S
Durable IP67 rated key switch with latching operation and DPST configuration for reliable performance.
Manufacturer part number: WRLM-5-S-S
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Positions = 2
Switch Operation = Latching
Contact Configuration = DPST
Key Trapping = Yes
Contact Current Rating = 4 A @ 250 V ac
IP Rating = IP67
Terminal Type = Solder
Case Material = Glass Fibre Reinforced PA
Bezel Shape = Tapered
Depth Behind Panel = 40.85mm
Key Index Angle = 90°
Contact Material = Silver Cadmium Oxide
Minimum Operating Temperature = -25°C
2 keys. 16mm Sealed Key Switch IP66/IP67 - WRLM Series. 2 pole ON-OFF miniature mains key lock switch Two part construction, the lock is inserted into the panel from the front and the mains switch module snaps on from the rear of the panel 5 disc lock type 90° lock movement Flat key that can be inserted into the lock either way up Standard solder terminals IP67 rated Maximum panel thickness of 4.5mm Switch module approved to EN61058 by DEMKO
