Lorlin IP67 Key Switch, DPST, 4 A @ 250 V ac 2-Way - WRLM-5-S-D

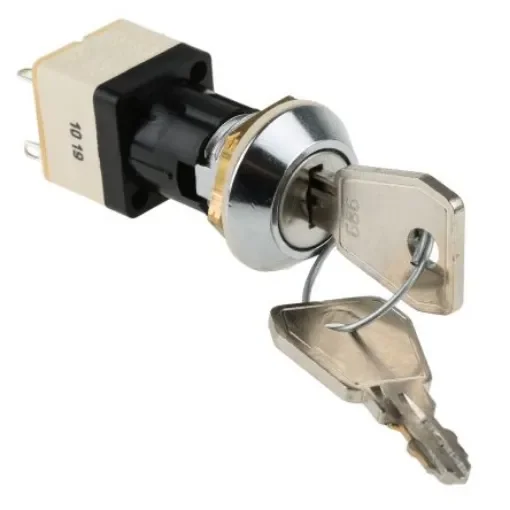

Lorlin Key SwitchThe Lorlin key switch has a double pole double throw(DPDT) OFF-ON contact configuration. It is high tech, miniature, key-operated lock switch. The key switch comes in a 2-part construction, a switch module and the key lock. The key lock can be fitted from the front of the panel and then the switch module can be snapped on from the rear. It has a contact current rating of 4A at 250VAC.Features and BenefitsUp to 200 key combinations are keys to differ Common keys available keys to pass Standard solder terminals (printed circuit terminals optional – add /P to part number). For continued exterior use lubricate lock regularly Snap on switch module Number of positions are 2 Latching switch operation Key trapping Solder terminal Case material is glass-fibre reinforced PA Bezel shape is tapered Depth behind panel is 40.85mm Key index angle is 90° Contact material is silver cadmium oxide Mechanical life is 15,000 operations Operating temperature range -25°C and 85°CApplicationsControl panels Lighting controlsCertificationsEN61058 IP67 rated
