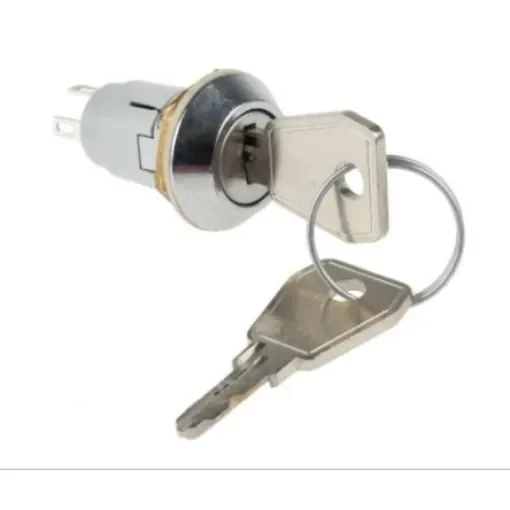

Lorlin IP66, IP67 Keylock Switch, SPDT, 1 A @ 115 V ac 2-Way Random-Key - WRL-5-D-D-2-RS

Number of Positions = 2
Switch Operation = Latching
Contact Configuration = SPDT
Key Trapping = Yes
Contact Current Rating = 1 A @ 115 V ac
IP Rating = IP66, IP67
Key Type = Random
Terminal Type = Solder
Case Material = Nylon 66
Bezel Shape = Round
Application = Marine
Depth Behind Panel = 22.4mm
Key Index Angle = 90°
Contact Material = Brass CZ108
Minimum Operating Temperature = -20°C

For continued exterior use lubricate with oil regularly. Suitable for Marine Environment exposure to Severity 1(EN60068-2-52). Lorlin WRL Sealed Keylock Switches. The WRL series has been designed to offer a miniature, 16mm key lock with an IP66/IP67 rating. They also have a wide temperature range of -20 to +65°C making them suitable for many possible applications. Keys are double entry and users can select either key locking or removable from both/all positions. They are available in 2 or three positions and all units are equipped with solder terminals. Two keys are supplied with each switch and options for common key (901) or different key (200 potential differs) are available. Made in UK Miniature key-operated Lock switch Single or Double pole Up to 200 key combinations – keys to differ Common keys available – keys to pass Keys are double entry (they can be inserted into the lock either way up) Occupies small panel area Easily assembled through front of equipment panel Rear projection less than 30mm from panel
