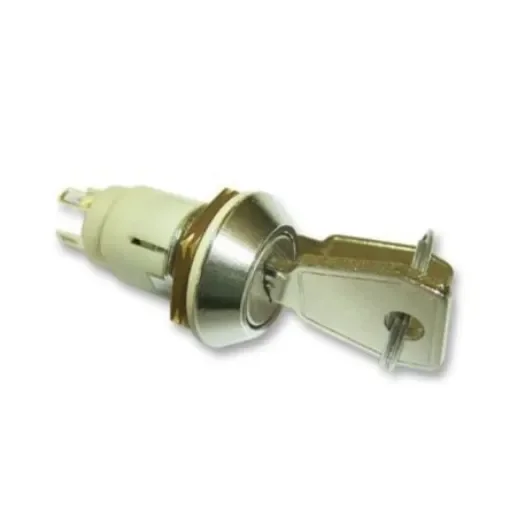

Lorlin IP66, IP67 Keylock Switch, DPST, 1 A @ 115 V ac 2-Way Common-Key - WRL-5-L-S-2-RS

Number of Positions = 2
Switch Operation = Latching
Contact Configuration = DPST
Key Trapping = Yes
Contact Current Rating = 1 A @ 115 V ac
IP Rating = IP66, IP67
Key Type = Common
Terminal Type = Solder
Case Material = Nylon 66
Bezel Shape = Round
Application = Marine
Depth Behind Panel = 22.4mm
Key Index Angle = 60°
Contact Material = Brass CZ108
Voltage Rating AC = 115V

Lorlin Sealed Keylock SwitchThe Lorlin Keylock switch has a double pole single throw (DPST) contact configuration. It is high tech, miniature, key-operated lock switch. It is suitable for many possible applications. These double entry keys allow the users to select either key locking or removable from both/ all positions. It is available in 2 or 3 positions and all units are equipped with solder terminals. Each switch is supplied with 2 keys with options for a common key (901) or different key (200 potential differs). The switch has a contact current rating of 1A and voltage rating of 115VAC.Features and BenefitsUp to 200 key combinations of keys to differ Common keys available, keys to pass Keys are double entry (they can be inserted into the lock either way up) Occupies small panel area Easily assembled through front of equipment panel Rear projection less than 30mm from panel For continued exterior use lubricate with oil regularly Latching switch operations Key trapping Solder terminal Nylon 66 case material Bezel shape is round Depth behind panel is 22.4mm Key index angle is 60° Contact material is brass CZ108 Mechanical life is more than 10,000 cycles Operating temperature ranges between -20°C and 65°CApplicationsMarine Control panelsCertificationsIP66 rated IP67 rated UL 94V-0
