Key Features:
- Marine Grade Construction: Crafted from anodized marine aluminum for enhanced corrosion resistance and durability.
- Dual-Function Operation: Independent operation of the gypsy (chainwheel) and rope capstan, allowing for efficient handling of both chain and rope.
- Manual Chain Release: Equipped with a manual chain release for secure anchoring.
- Manual Override: Includes a manual override feature to facilitate chain retrieval in the event of electrical failure.
- Versatile Chain Compatibility: Compatible with various chain sizes, including 6mm, 7mm, 8mm, and 10mm, as well as 5/16" HT, 3/8" HT, 3/8" BBB, and 3/8" BBB/PC chains.
Technical Specifications:
- Maximum Pull: 400 kg (approximately 882 lbs)
- Working Load: 70 kg (approximately 154 lbs)
- Weight: 10 kg (approximately 22 lbs)
- Recommended Boat Length: Suitable for boats ranging from 6 meters to 27 meters (approximately 20 to 89 feet)
- Chain Size Compatibility: 6mm, 7mm, 8mm, and 10mm ISO 4565/DIN 766 chains; 5/16" HT, 3/8" HT, 3/8" BBB, and 3/8" BBB/PC chains
Materials:
- Body: Anodized marine aluminum alloy
- Gypsy (Chainwheel): Hot-forged bronze for superior mechanical strength
Dimensions:
- A: 192 mm
- D: 85 mm (diameter)
- F: 222 mm
- L: 80 mm
- M: 145 mm
- N: 167 mm

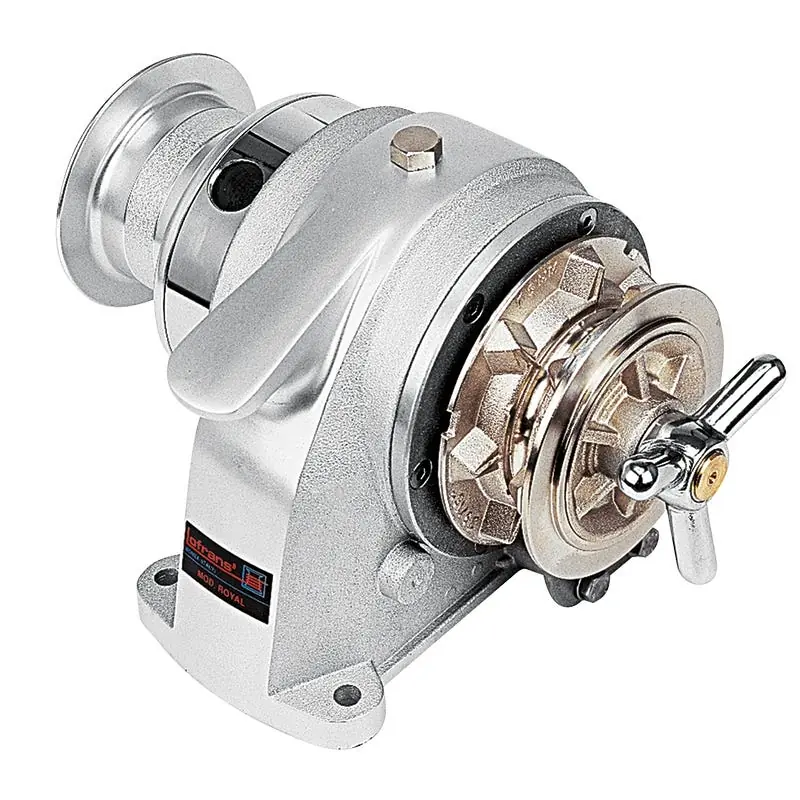

Compatibility Information: The Lofrans Royal Horizontal Manual Windlass is designed to accommodate a wide range of chain sizes, making it versatile for various anchoring needs. Its dual-function operation allows for efficient handling of both chain and rope, providing flexibility for different anchoring scenarios.
Additional Details:
- Installation Manual: Included in French; available for download on the manufacturer's website.
- Warranty: Comes with a 2-year legal warranty plus an additional 1-year free commercial warranty.
