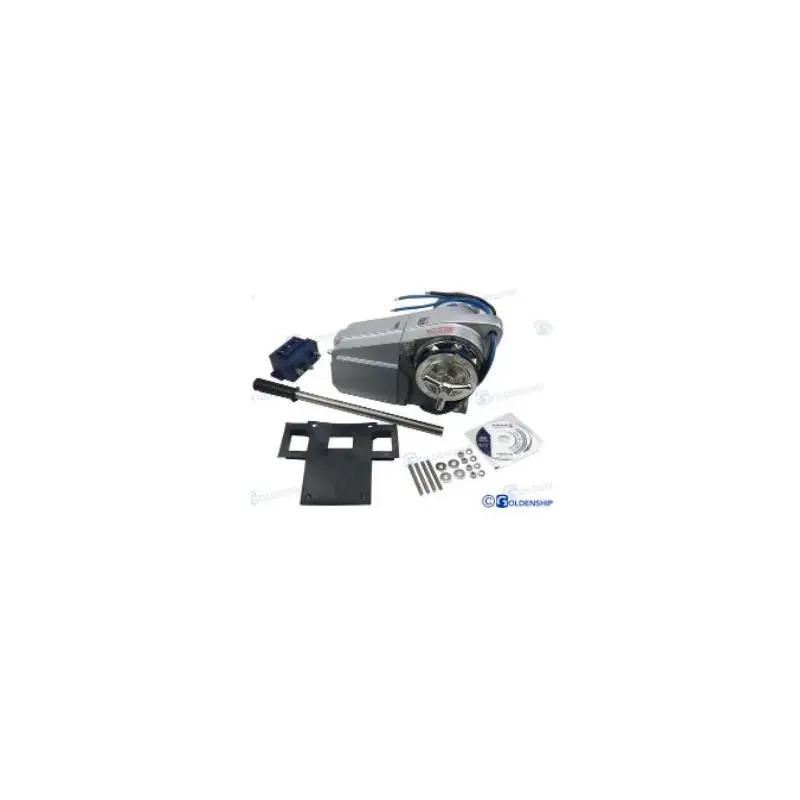

The Lofrans Cayman horizontal electric windlass is a professional solution for anchor management on boats up to 13 meters in length. Made with marine-grade aluminum alloy and forged bronze internal components, this equipment ensures long service life and corrosion resistance in demanding marine environments.
Technical Features
- Power supply: 24V
- Power: 1000 W
- Type: horizontal electric windlass with manual emergency operation
- Suitable for DIN 766 calibrated chain of 8 mm
- Lifting speed: 20 meters/minute
- Weight: 21 kg
- Maximum working load: 900 kg
- Main materials: marine anodized aluminum and forged bronze
- For vessels up to 13 meters in length
Advantages
- High performance and reliability even with frequent anchoring
- Corrosion-resistant construction (harsh marine conditions)
- Easy integration on deck
- Manual mode for emergencies
- Low maintenance and easy cleaning
Applications
- Cruising boats, sailboats, and recreational vessels up to 13 m
- Installations requiring agile and safe anchor handling
- Ideal for 8 mm DIN766 chains
Installation and Compatibility
- Horizontal deck mounting
- Requires connection to 24V system and control panel
- Compatible with Lofrans accessories and controls (check options)
Maintenance and Usage Tips
- Regularly wash to remove salt and residues
- Lubricate gears and bearings as per manufacturer recommendations
- Check the chain and electrical connections before each use
Safety
- Always use the recommended cut-off switch to prevent shocks
- Do not exceed the indicated maximum load
| Voltage | 24V |
|---|
| Power | 1000 W |
|---|
| Chain Diameter | 8 mm (DIN 766) |
|---|
| Lifting Speed | 20 m/min |
|---|
| Weight | 21 kg |
|---|
| Max Load | 900 kg |
|---|
| Materials | Marine aluminum and forged bronze |
|---|
| Reference | GS63022 |
|---|
| Brand | Lofrans |
|---|
