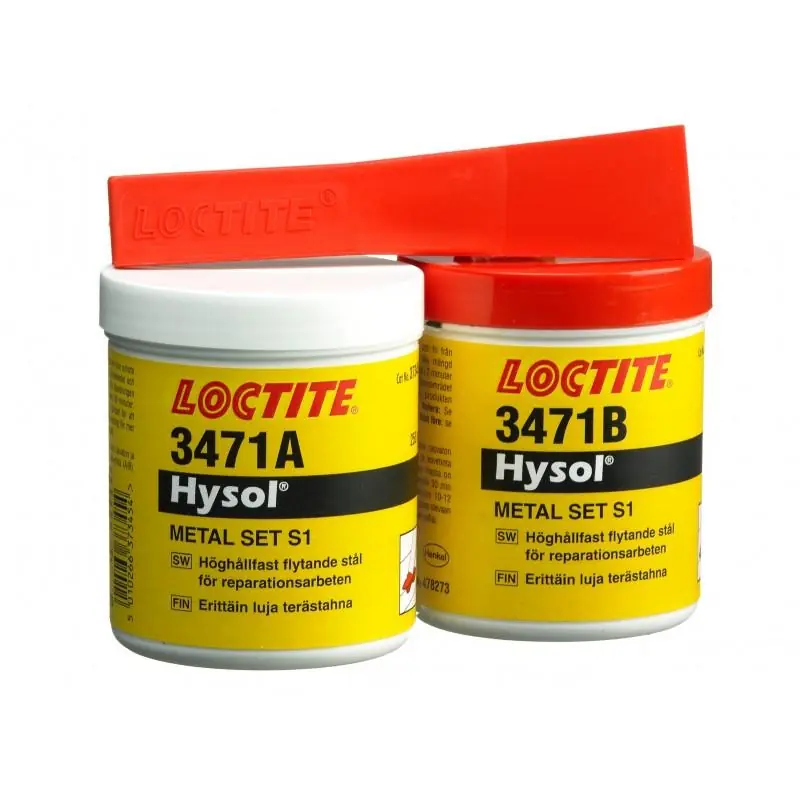

LOCTITE® EA 3471 is a two-part, non-sagging, steel-reinforced epoxy repair putty that cures to a metal-like finish. It is designed for easy application without the need for heating or welding and can be machined, drilled, tapped, or filed after curing. This product is ideal for repairing non-structural defects in castings, making jigs and fixtures, sealing vessels, tanks, and valves, resurfacing worn air seals, and filling cavitated areas. It operates effectively within a temperature range of -30°C to +105°C (-22°F to 221°F).
- Cures to a metal-like finish
- Superior adhesion on metal surfaces
- Bonds well to all metal substrates
- Will not sag or shrink
- Rebuilds worn parts quickly
Technical Specifications:
- Fixture Time: 180 minutes
- Mix Ratio (by volume): 1:1
- Shear Strength: 20.0 N/mm²
- Work Life: 45 minutes
- Operating Temperature Range: -30°C to +105°C (-22°F to 221°F)
- Shore D Hardness: 82
- Elongation: 0%
- Modulus: 1,357,574 psi
- Glass Transition Temperature (Tg): 60°C
- Coefficient of Thermal Expansion (CTE): 43e-06 (K-1), 125e-06 (K-1)
- Flash Point: >199.4°F
- Thermal Conductivity: 0.52 W/m·K
- Surface Resistivity: 3.1e15 ohm·cm
- Volume Resistivity: 1.1e15 ohm·cm
- Shelf Life: Store in unopened containers in a dry location; optimal storage temperature is 8°C to 21°C (46°F to 70°F). Storage below 8°C or above 28°C (82°F) can adversely affect product properties.
Materials:
- Part A: Diiron Trioxide, Epoxy Resin, Calcium Carbonate, Neopentyl Glycol Diglycidyl Ether, Manganese
- Part B: Amine Adduct, Aliphatic Amine Adduct, Triethylenetetramine, Substituted Piperazine, Silicon Dioxide, Aliphatic Amine, 4,4'-Isopropylidenediphenol, Aluminum, Alkyl Phenol, Benzyl Alcohol, Benzyldimethylamine
Compatibility Information:
LOCTITE® EA 3471 is compatible with various metal substrates, including steel, cast iron, aluminum, bronze, copper, and stainless steel. It is not recommended for use in pure oxygen systems, oxygen-rich systems, or as a sealant for chlorine and other strong oxidizing materials.
