Key Features:
- Fast Fixturing: Achieves rapid initial bond strength, reducing assembly time.
- Moisture Resistant: Provides reliable bonding in humid environments.
- Temperature Resistance: Operates effectively in temperatures ranging from -40°C to 100°C (-40°F to 212°F).
- Gap Filling: Capable of filling gaps up to 5 mm (0.2 inches), accommodating slight misalignments.
- Gel Consistency: Prevents adhesive flow, making it suitable for vertical and overhead applications.
Technical Specifications:
- Type: Two-component cyanoacrylate/acrylic hybrid adhesive
- Color: Resin: Yellow; Hardener: Clear
- Mix Ratio: 10 parts resin to 1 part hardener by volume
- Fixture Time (Aluminum, etched, 0.5 mm gap): Less than 60 seconds
- Shear Strength (Steel, grit blasted): 25.0 N/mm² (3,625 psi)
- Operating Temperature Range: -40°C to 100°C (-40°F to 212°F)
- Viscosity (Resin at 25°C): 200.0 - 1,300.0 mPa·s (cP)
- Viscosity (Hardener at 25°C, shear rate 1,000 s⁻¹): 1.0 - 30.0 mPa·s (cP)
Materials:
- Resin: Cyanoacrylate
- Hardener: Acrylic
Dimensions:

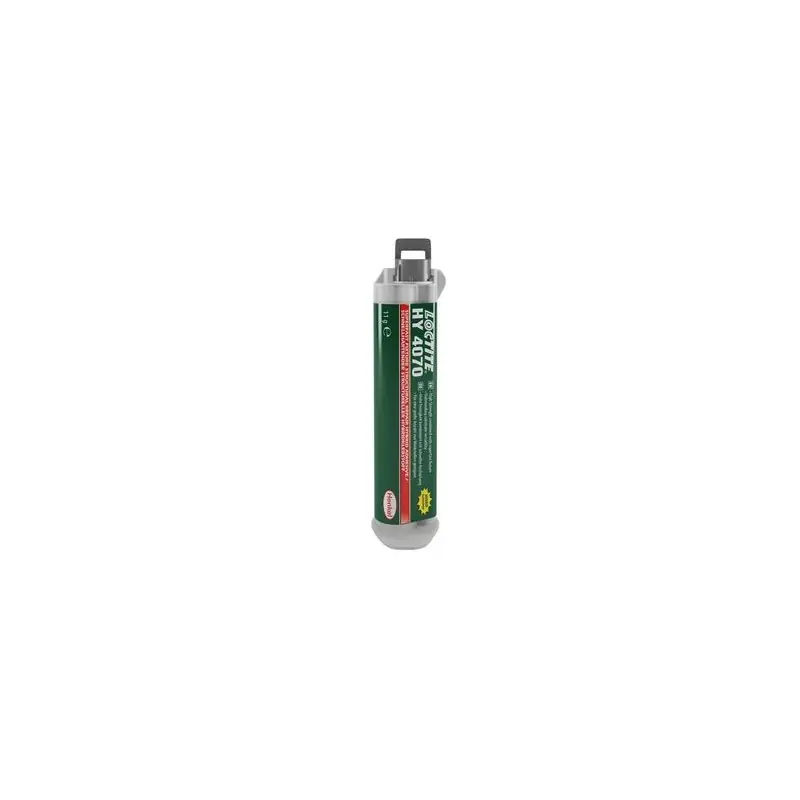

- Package Size: 11 g twin syringe
- Package Quantity: 10 syringes per case
Compatibility Information:
LOCTITE® HY 4070 is suitable for bonding a wide range of substrates, including: Plastics, Rubbers, Metals, Composites, Elastomers, Epoxies, Fiberboard, Gel coats, Laminates, Painted surfaces, Phenolics, Thermoplastics, Thermosets, Urethanes, Vinyl, Wood.
