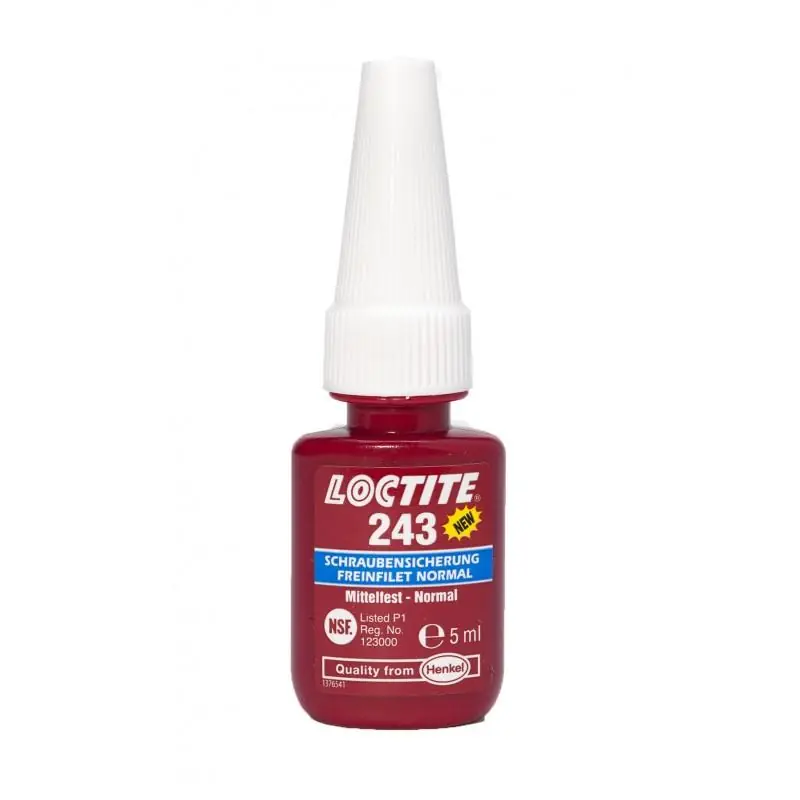

LOCTITE® 243 is a blue, general-purpose threadlocker that provides a medium-strength bond, effectively locking and sealing metal nuts and bolts to prevent loosening due to shock and vibration. It is suitable for use on all metals, including passive substrates such as stainless steel, aluminum, and plated surfaces, without the need for a primer. Additionally, LOCTITE® 243 is proven to tolerate minor contamination by industrial oils, such as engine oils, corrosion prevention oils, and cutting fluids, making it ideal for applications where fasteners may be exposed to these substances.
- Medium Strength: Provides a bond that is strong enough to prevent loosening but can be disassembled with standard hand tools for easy maintenance.
- Oil Tolerant: Suitable for use on most oil-coated, 'as-received' fasteners without the need for cleaning.
- Versatile Application: Effective on all metals, including passive substrates such as stainless steel, aluminum, and plated surfaces.
- Temperature Resistance: Operates effectively within a temperature range of -55.0°C to 180.0°C (-65.0°F to 360.0°F).
- Disassembly: Allows for disassembly with ordinary hand tools, facilitating easy service and maintenance.
- NSF/ANSI 61 Certified: Meets the requirements for use in potable water systems.
Technical Specifications:
- Application Method: Can be applied using a dispense gun, dispense system, or manually.
- Cure Type: Anaerobic cure.
- Fixture Time: Approximately 10 minutes.
- Breakaway Torque (M10 Steel Nuts/Bolts): Approximately 26.0 N·m (230.0 in./lb.).
- Prevail Torque (M10 Steel Nuts/Bolts): Approximately 5.0 N·m (40.0 in./lb.).
- Specific Gravity at 23.0°C: 1.08.
- Viscosity at 20 RPM: Approximately 2150.0 mPa·s (cP).
LOCTITE® 243 is formulated with a proprietary blend of anaerobic adhesives designed to bond metal surfaces effectively. The exact composition is proprietary and not publicly disclosed.
