Littelfuse Chassis Mount Automotive Relay, 12V dc Coil Voltage - 880051

Coil Voltage = 12V dc
Maximum Switching Voltage DC = 12V dc
Mounting Type = Chassis Mount
Terminal Type = Wire Lead
Contact Material = Copper (Thread), Silver Alloy°C

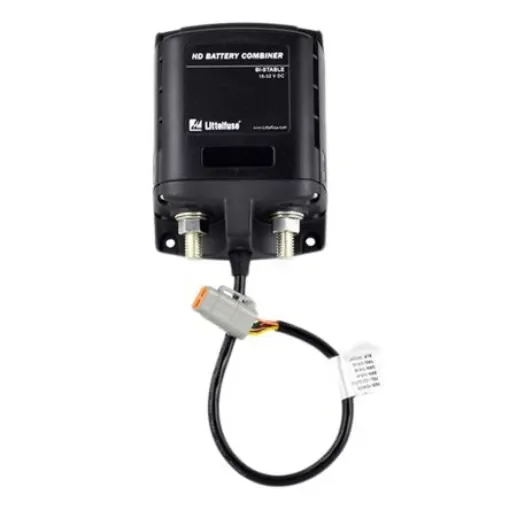

HD Series Bi-Stable Battery Combiners. The HD series Bi-Stable battery combiner is an intelligent relay which shares the charge voltage between two battery banks. When an industrial vehicle has a main vehicle battery and a separate battery for auxiliary loads, it can be common for one to drain faster than the other depending on loads. This unit allows the charge to be shared allowing the heavily loaded battery to charge and operate longer in critical applications. This unit is IP67 sealed allowing it to be placed between or near the batteries eliminating the requirement to run costly, heavy copper cables into the cab. The connector accepts the Deutsch DT06-6S connector or an equivalent compatible connector. Potential Applications. Heavy vehicles Construction Agriculture Military Mining Agriculture. Features and Benefits. Supports high current loads such as large inverter loads Operates under high temperature conditions Compact, rugged construction Sealed to IP67
