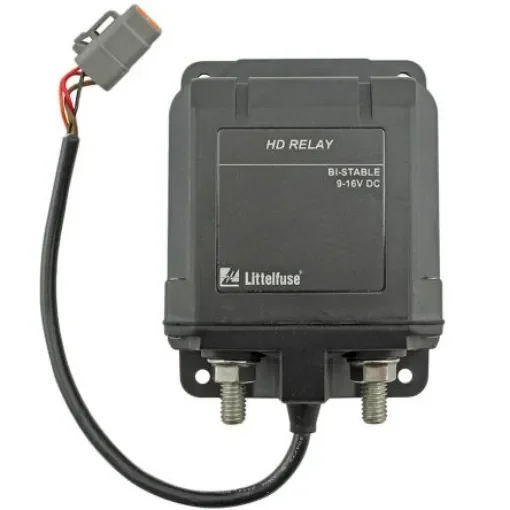

Littelfuse Chassis Mount Automotive Relay, 12V dc Coil Voltage, 300A Switching Current - 880086

Coil Voltage = 12V dc
Switching Current = 300A
Mounting Type = Chassis Mount
Terminal Type = Wire Lead
Contact Material = Copper (Thread), Silver Alloy°C

HD Series Bi-Stable Relay, Remote Switch. The HD series Bi-Stable relay is a remotely operated disconnect for high amperage vehicle circuits. It is rated to 300 A continuous and 1500 A inrush for 10 seconds. The Bi-Stable (latched) operation of the device is extremely efficient drawing no current in the On or Off positions elimination continuous demand on the batteries. It is sealed to IP67 allowing the unit to be placed outside the cab with the switch placed inside for operator control. This allows reduced use of heavy, costly copper cabling usually routed from the battery, to the cab then to the auxiliary loads. The switch is purchased separately and two relays are available for either 12 V or 24 V circuits. Potential Applications. Heavy vehicles Construction Agriculture Military Mining Agriculture. Features and Benefits. Supports high-amp intermittent and continuous current loads Eliminates routing of heavy gauge cables Compact, rugged construction Utilises industry standard Deutsch DT06-6S connector Sealed to IP67/69K Shock resistance: 10 G Vibration resistance: 8 G Operating temperature range: -50°C to +105°C
