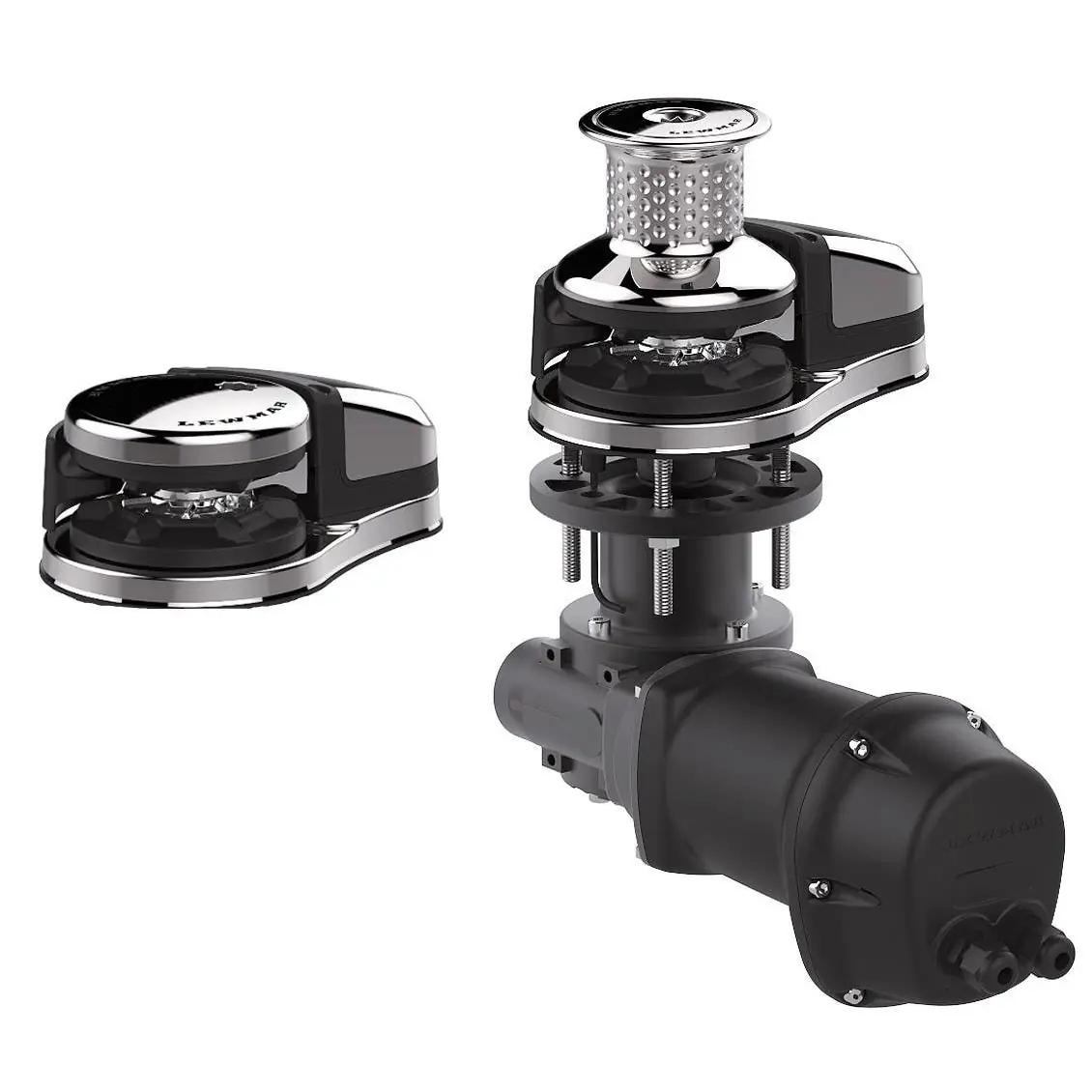

The Lewmar VX3 Vertical Windlass is engineered for boats ranging from 12 to 14 meters (approximately 39 to 46 feet) in length. This windlass offers a maximum pull of 1175 kg (2590 lbs), ensuring efficient anchoring and retrieval. It is available in both 12V and 24V configurations, with a motor power of 1500W.
- Motor Power: 1500W
- Voltage Options: 12V or 24V
- Maximum Pull: 1175 kg (2590 lbs)
- Working Load Limit: 294 kg (648 lbs)
- Maximum Line Speed: 40 meters/minute (131 feet/minute)
- Normal Current Draw: 132 Amps
- Circuit Breaker: 110 Amps
- IP Rating: IP67-rated motor housing
- Construction: Stainless steel and composite materials
- Gypsy Options: Available with or without gypsy; compatible with 8mm (5/16") or 10mm (3/8") chain
- Manual Control: Includes manual control for chain or rope retrieval in case of electric function failure
- Chain Counter: Equipped with a magnet for chain counter
- Footprint: Same as V2/3 models
- Relay Box: Sold with its relay box
Materials:
- Base: Composite and stainless steel
- Cover: Stainless steel 316
- Drum: Bronze core with two highly resistant polymer flanges
Compatibility Information:
- Boat Length: Suitable for boats from 12 to 14 meters (39 to 46 feet)
- Chain Size Compatibility: 8mm (5/16"), 10mm (3/8")
