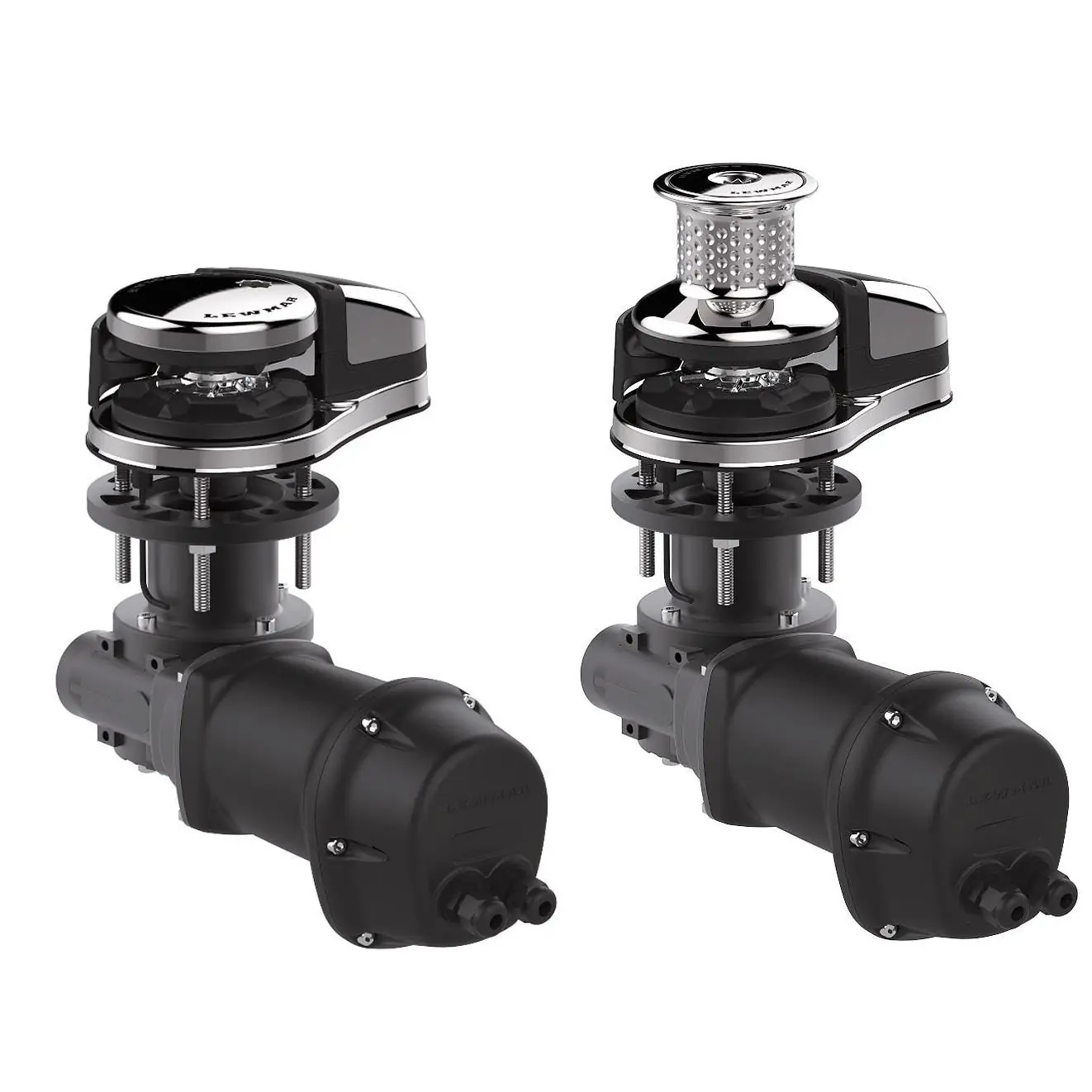

The Lewmar VX3 Vertical Windlass is engineered for boats ranging from 12 to 14 meters (approximately 39 to 46 feet) in length. It offers a maximum pull of 1175 kg, ensuring efficient anchoring and retrieval. The windlass is available in both 12V and 24V configurations, with a 1500W motor providing robust performance.
- Hybrid Gypsy Design: Features a nickel-plated brass core combined with polymer chain wheel pockets, delivering a 15% weight reduction and 5% increase in strength compared to all-metal gypsies. This design ensures smooth and quiet operation, with no metal-on-metal noise.
- Manual Clutch Release: Allows for manual retrieval of chain or rope in the event of an electrical failure.
- IP67-Rated Motor Housing: Provides protection against dust and water ingress, enhancing durability and reliability.
- Same Footprint as V2/3 Models: Ensures compatibility with existing installations, facilitating easy upgrades.
- Magnet and Pre-Installed Chain Counter Sensor: Simplifies the addition of an electronic chain counter by providing a pre-installed magnet.
Technical Specifications:
- Motor Power: 1500W
- Voltage Options: 12V or 24V
- Maximum Pull: 1175 kg
- Working Load Limit: 294 kg
- Maximum Line Speed: 40 meters/minute
- Normal Current Draw: 132A (12V) or 70A (24V)
- Circuit Breaker Rating: 110A (12V) or 90A (24V)
- Approximate Weight: 16.1 kg (Gypsy Only) or 17.1 kg (Gypsy with Drum)
Materials:
- Construction: Stainless steel 316 for the cover; composite and stainless steel base
- Gypsy: Nickel-plated brass core with polymer chain wheel pockets
Dimensions:
- Footprint: Same as Lewmar V2/3 models, facilitating easy replacement
Compatibility Information:
- Chain Sizes: 8mm (DIN 766), 10mm (DIN 766), or 10mm (ISO 4565)
- Rope Sizes: 12mm, 14mm, or 16mm for 8mm Gypsy; 14mm or 16mm for 10mm Gypsy
