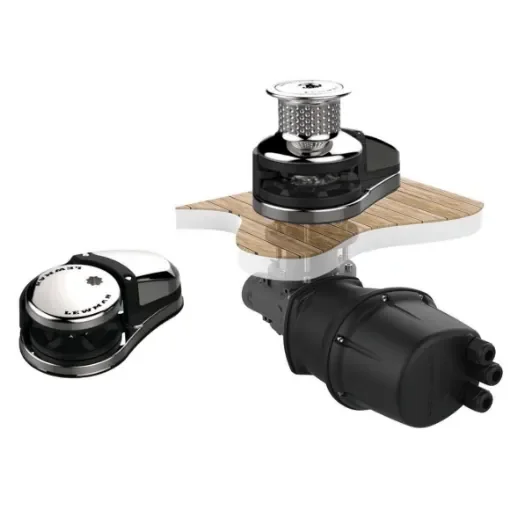

The Lewmar VX2 Windlass is a vertical-axis anchor winch designed for boats ranging from 9 to 13 meters (approximately 30 to 43 feet). It offers a maximum pull of 1,025 kg, ensuring efficient anchoring performance. The windlass is available with or without a gypsy, and supports chain diameters of 8 mm or 10 mm.
- Vertical Axis Design: Requires minimal space in the anchor locker, with the motor housed under the deck, resulting in a reduced winch height and a more discreet deck appearance.
- Mixed Drum Construction: Features a bronze core with two highly resistant polymer flanges, providing durability, lightweight operation, and quieter performance.
- Chain Compatibility: The mixed drum design allows compatibility with both chain and rope.
- Magnet and Chain Counter Sensor: Equipped with a magnet for chain counter, facilitating easy addition of an electronic chain counter.
- Manual Control: Includes a manual control for retrieving chain or rope in case of electric function failure.
- IP67 Motor Rating: The motor is rated IP67, making it waterproof and dustproof, ensuring optimal operation in marine conditions.
- Same Footprint as V2/3 Models: Designed to fit the same footprint as the V2/3 models, allowing for easy replacement or upgrade.
Technical Specifications:
- Motor Power: 1,000W
- Voltage: 24V
- Maximum Pull: 1,025 kg
- Working Load Limit: 256 kg
- Maximum Line Speed: 39 m/min
- Normal Current Draw: 74 A
- Circuit Breaker: 90 A
- Weight: 16.1 kg
- Chain Size Compatibility: 8 mm or 10 mm
- Rope Size Compatibility: 12-16 mm
Materials:
- Cover: 316 stainless steel
- Base: Composite and stainless steel
- Drum: Bronze core with polymer flanges
Dimensions:
- Top Diameter: 12 mm or 16 mm
- Footprint: Same as V2/3 models
Compatibility Information:
- Boat Size: Suitable for boats from 9 to 13 meters (approximately 30 to 43 feet)
- Chain Size: Compatible with 8 mm or 10 mm chains
- Rope Size: Compatible with 12-16 mm ropes
