Key Features:

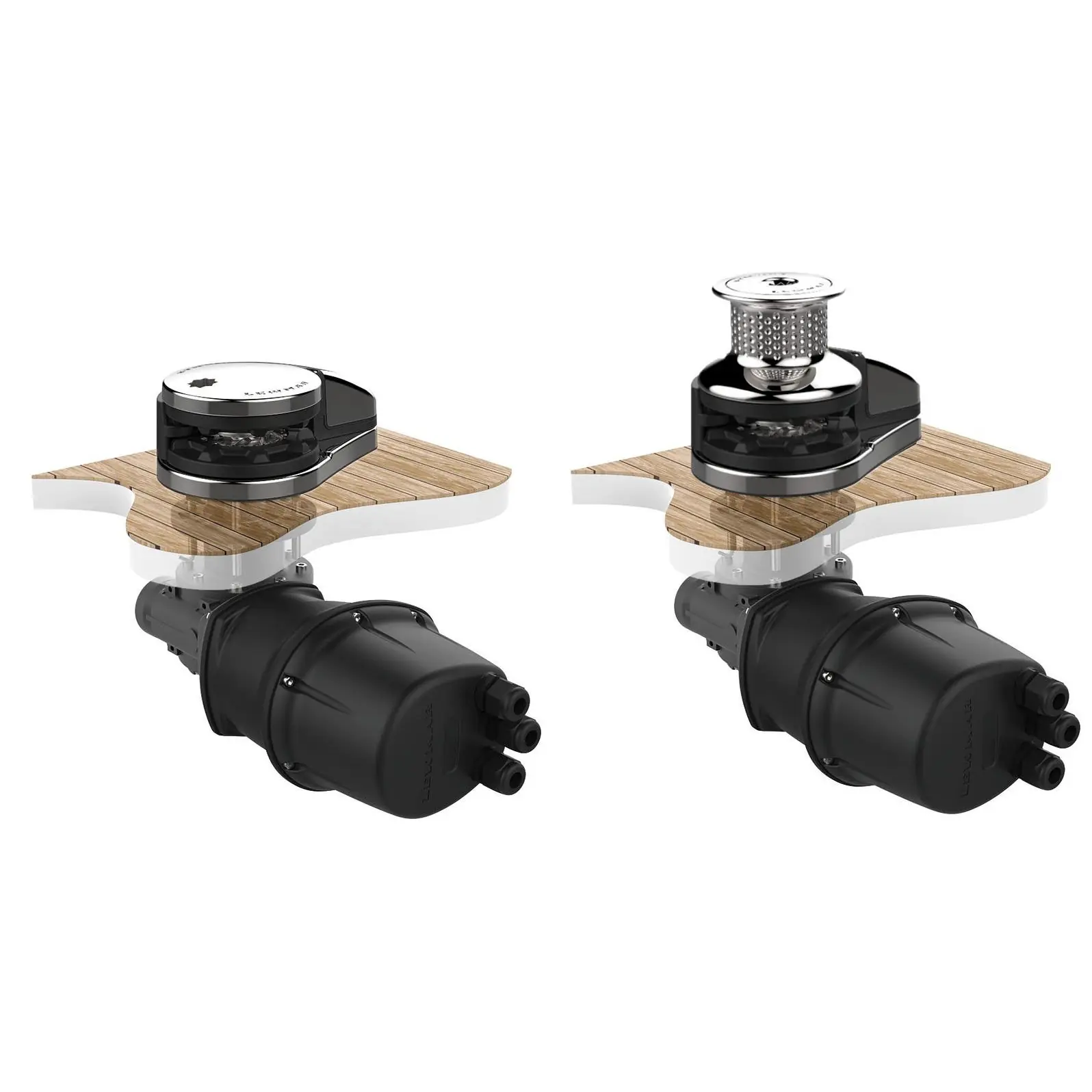

- Vertical Windlass Design: Requires minimal space in the anchor locker, with the motor housed under the deck, resulting in a reduced windlass height and a more discreet deck profile.
- Mixed Gypsy Construction: Features a hybrid gypsy combining a bronze core with two hyper-resistant polymer flanges, offering enhanced durability, reduced weight, and quieter operation.
- Chain Counter Magnet: Equipped with a magnet for easy addition of an electronic chain counter, simplifying installation.
- Manual Control: Includes a manual clutch release for manual retrieval of chain or rope in case of electrical failure.
- Compatibility: Suitable for boats ranging from 9 to 12 meters in length.
Technical Specifications:
- Motor Power: 700W
- Voltage: 12V
- Maximum Pull: 850 kg
- Working Load Limit: 213 kg
- Maximum Line Speed: 29 m/min
- Normal Current Draw: 120A
- Circuit Breaker Rating: 90A
- Approximate Weight (Gypsy Only): 13.9 kg
- Approximate Weight (Gypsy/Drum): 14.9 kg
- Chain Compatibility: 6/7 mm (1/4"), 8 mm (5/16"), 10 mm DIN, and 10 mm ISO chains
- Rope Compatibility: 12-16 mm diameter ropes
- Construction Materials: Composite and 316 stainless steel for the deck unit; bronze core with polymer flanges for the gypsy; IP67-rated motor housing
- Installation: Same footprint as V2/3 models, facilitating easy replacement.
