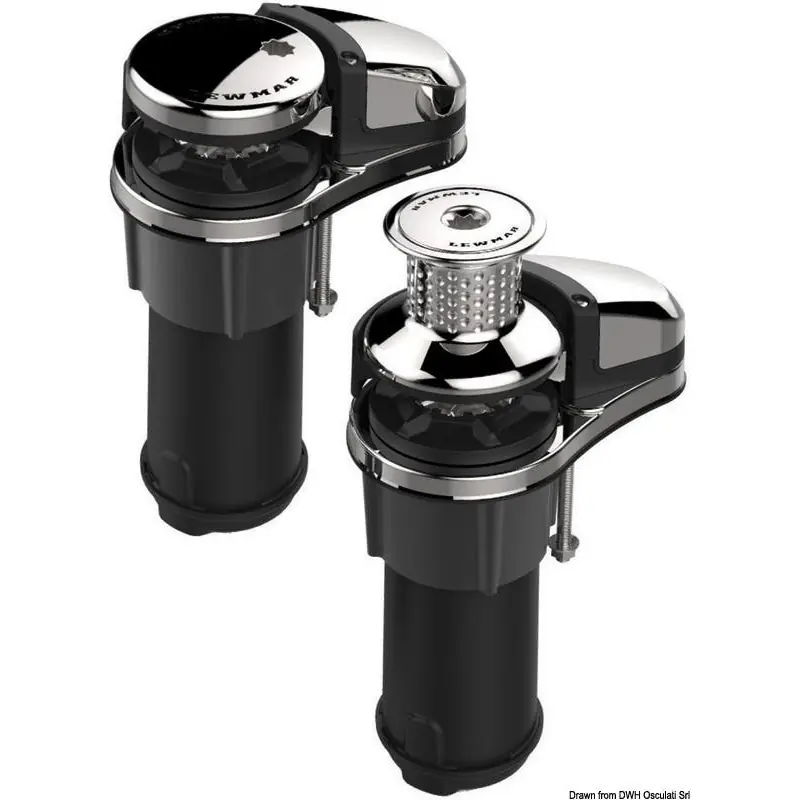

The Lewmar VX1L Windlass is a compact, vertical-axis windlass designed to provide efficient anchoring solutions for boats up to 36 feet in length. It features a waterproof motor rated to IP67 standards, ensuring reliable performance even in harsh marine environments. The windlass is constructed with a combination of stainless steel and composite materials, offering durability while reducing weight. It is available in both 500W and 800W motor options, with gypsy sizes compatible with Ø6/7mm or Ø8mm chain. The VX1L is suitable for both chain-only and rope/chain anchoring systems.
- Motor Options: Available in 500W and 800W 12V configurations.
- Gypsy Sizes: Compatible with Ø6/7mm (1/4") and Ø8mm (5/16") chain.
- Construction: Stainless steel and composite materials for strength and reduced weight.
- Waterproofing: Motor housing rated to IP67, providing protection against dust and temporary immersion.
- Manual Clutch Release: Allows for manual retrieval of chain or rope in case of electrical failure.
- Drum Option: Available with or without a drum for rope/chain anchoring systems.
- Chain Counter Sensor: Pre-installed magnet and sensor for chain counter functionality.
Technical Specifications
| Specification | 500W Model (6/7mm Gypsy) | 500W Model (8mm Gypsy) | 800W Model (6/7mm Gypsy) | 800W Model (8mm Gypsy) |
|---|
| Maximum Pull | 650 kg | 650 kg | 920 kg | 920 kg |
| Working Load Limit | 160 kg | 160 kg | 230 kg | 230 kg |
| Maximum Line Speed | 20 m/min | 20 m/min | 21 m/min | 21 m/min |
| Continuous Line Speed | 5 m/min | 5 m/min | 5 m/min | 5 m/min |
| Normal Current Draw | 75 A | 75 A | 105 A | 105 A |
| Recommended Circuit Breaker | 70 A | 70 A | 90 A | 90 A |
| Weight (Gypsy Only) | 8 kg | 8 kg | 8.5 kg | 8.5 kg |
| Weight (Gypsy with Drum) | 8.5 kg | 8.5 kg | 9 kg | 9 kg |
Materials
- Deck Unit: Stainless steel and composite construction for strength and reduced weight.
- Motor Housing: IP67-rated for waterproofing and dust protection.
- Gypsy: Available in stainless steel compatible with Ø6/7mm or Ø8mm chain.
Dimensions
- Height: Approximately 303 mm (12 inches).
- Width: Approximately 230 mm (9 inches).
- Depth: Approximately 230 mm (9 inches).
Compatibility Information
- Boat Length: Suitable for boats ranging from 6 to 11 meters (20 to 36 feet).
- Chain Size: Compatible with Ø6/7mm (1/4") and Ø8mm (5/16") chain.
- Rope Size: Compatible with Ø12-16mm rope when equipped with a drum.
