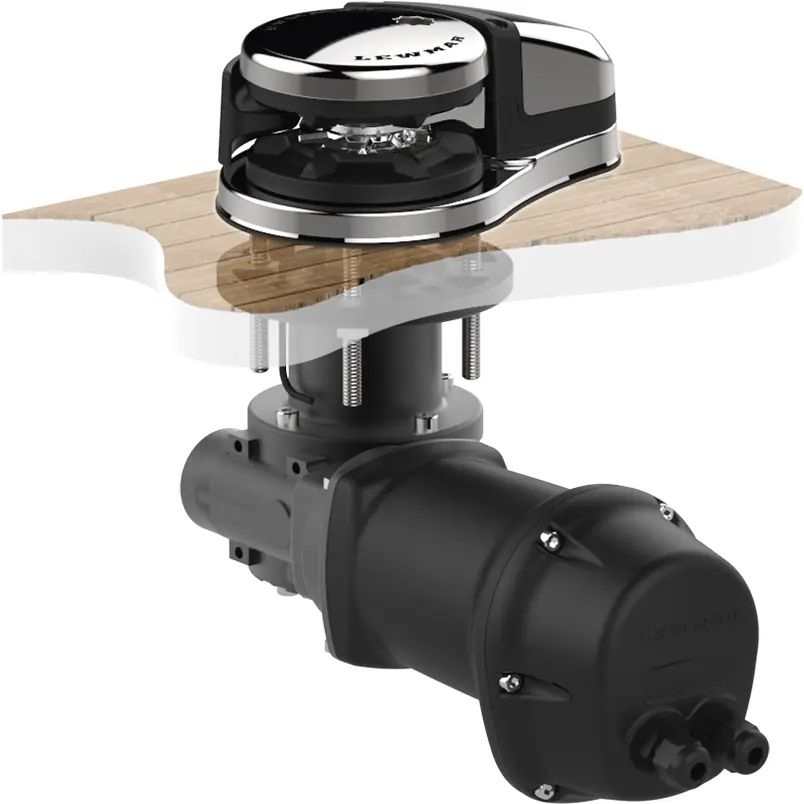

The Lewmar VX1 Vertical Windlass represents the latest advancement in windlass technology, combining lightweight composite materials with robust stainless steel components to deliver enhanced performance and durability. Designed for boats up to 40 feet, the VX1 offers efficient anchoring solutions with reduced noise levels and increased reliability.
- Motor Options: Available in 300W and 500W 12V configurations to suit various vessel sizes and anchoring requirements.
- Gypsy Compatibility: Equipped with a hybrid gypsy compatible with 6/7mm (1/4") and 8mm (5/16") calibrated chain, providing versatility for different anchoring setups.
- Construction: Features a robust worm wheel gearbox and a combination of stainless steel and composite materials, ensuring strength while reducing weight.
- Waterproofing: Motor housing is rated IP67, offering complete protection against dust and temporary immersion in water up to 1 meter, ensuring reliable operation in marine environments.
- Manual Control: Includes a manual clutch release for manual retrieval of chain or rope in case of electrical failure.
- Installation: Designed with a flexible motor orientation for easy installation and a reduced windlass height, making it more discreet on the deck.
Technical Specifications
| Specification | 300W Model (6/7mm Chain) | 500W Model (8mm Chain) |
|---|
| Maximum Pull | 400 kg | 675 kg |
| Working Load Limit | 100 kg | 169 kg |
| Maximum Line Speed | 25 m/min | 25 m/min |
| Normal Current Draw | 66 A | 126 A |
| Circuit Breaker | 50 A | 70 A |
| Approximate Weight (Gypsy) | 12.5 kg | 12.5 kg |
| Approximate Weight (Gypsy/Drum) | 13.5 kg | 13.5 kg |
Materials
- Deck Unit: Stainless steel and composite construction for durability and reduced weight.
- Gypsy: Hybrid design combining stainless steel and ultra-resistant polymer flanges, offering strength and quieter operation.
- Motor Housing: Constructed to meet IP67 waterproof standards, ensuring longevity and reliable performance.
Compatibility Information
The VX1 windlass is compatible with 6/7mm (1/4") and 8mm (5/16") calibrated chain, making it suitable for various anchoring setups. The hybrid gypsy design allows for compatibility with both chain and rope, providing versatility for different anchoring needs.
