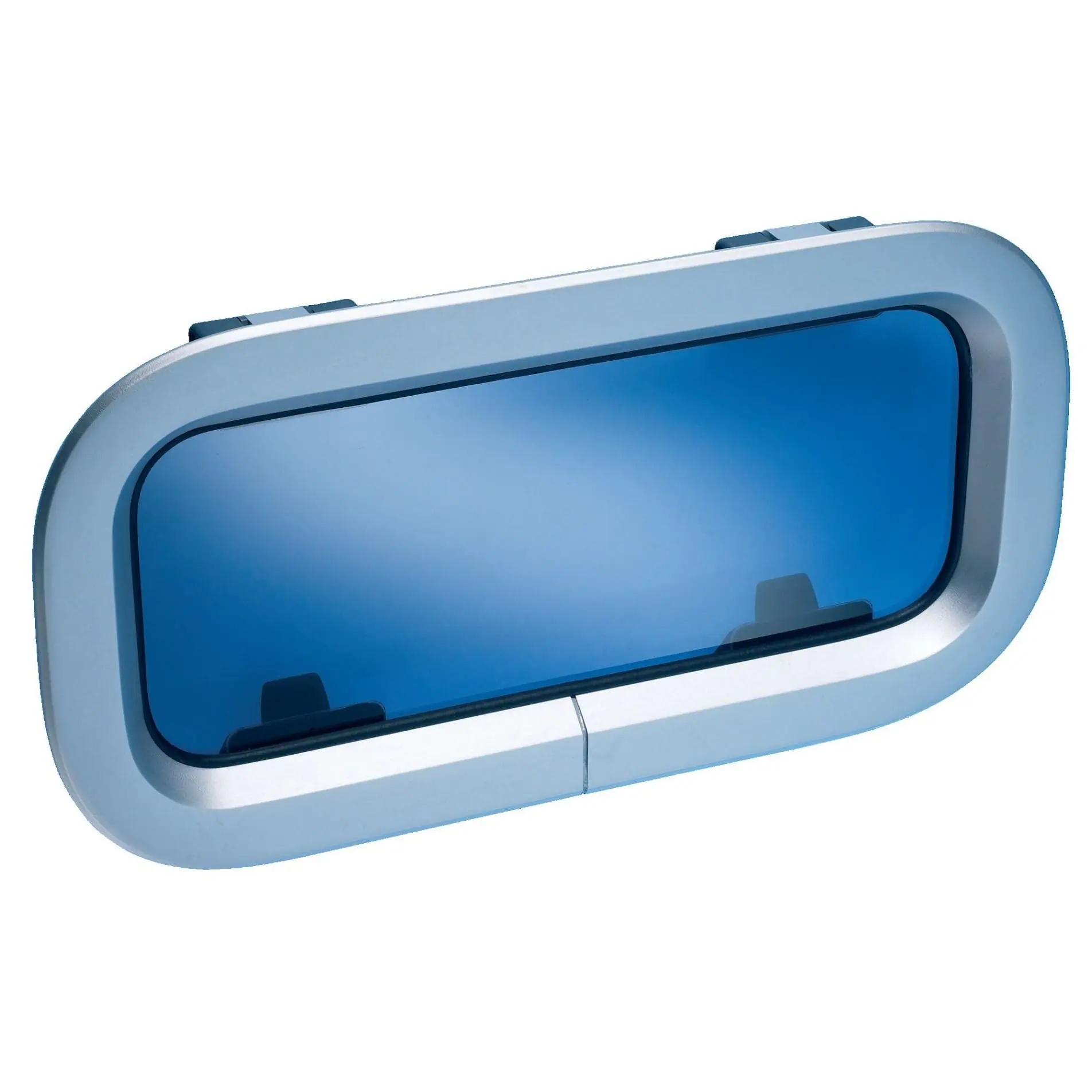

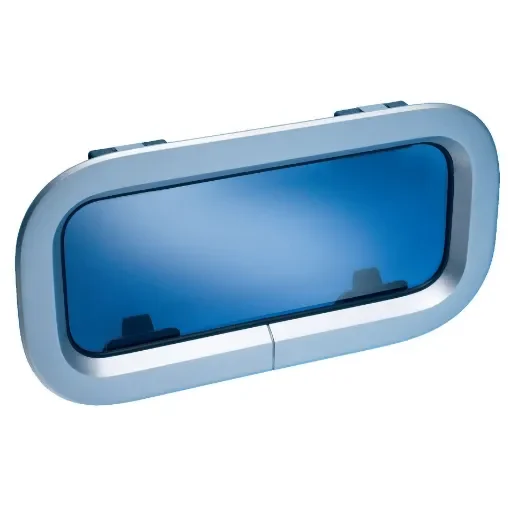

The Lewmar Standard Series Portlight is a high-quality, ultra-flat deck panel designed for easy installation and durability on sailing boats. Renowned for its sleek design and robust construction, this portlight offers excellent visibility and functionality.
- Ultra-Flat Profile: The portlight features an ultra-flat profile, measuring only 25 mm in height, ensuring a streamlined appearance on the deck.
- High-Strength Glazing: Equipped with 8 mm tinted ultra-resistant glazing, the portlight provides enhanced durability and solar protection while maintaining clear visibility.
- Integrated Friction Hinges: The portlight includes integrated friction hinges that allow for smooth operation and hold the window open at any position without the need for stays or straps.
- Quick-Action Securing Handles: Designed for ease of use, the portlight features quick-action securing handles that ensure a tight seal when closed.
- Complete Installation Kit: Each portlight comes with mounting screws, a mosquito net (except for sizes 4L and 4R), and tinted glass, facilitating straightforward installation.
Technical Specifications:
- Maximum Hull Thickness: 34 mm
- Minimum Hull Thickness: 7 mm
- Installation Surface Tolerance: Portlights must be fixed to a flat surface with a maximum tolerance of ±1 mm.
- Opening Angle: The portlight can open up to 95° and then fully to 180°, remaining locked in any position.
- Gasket System: Features a high-sealing gasket and a glazing replacement system, ensuring a secure and watertight seal.
- CE Certification: Complies with CE certification directive 2013/53/EU and ISO12216/2002, ensuring adherence to international safety and quality standards.
Materials:
- Frame: The outer frame is made from clear anodized aluminum, providing strength and corrosion resistance.
- Trim: The inner trim is available in white or ivory ABS plastic, offering a clean and stylish finish.
- Glazing: The portlight features a smoked gray acrylic lens, providing solar protection while maintaining clear visibility.
Dimensions:
- Overall Dimensions:
- Length (X): 176 mm
- Width (Y): 323 mm
- Height (Z): 4 mm
- Cutout Dimensions:
- Length (X1): 156 mm
- Width (Y1): 303 mm
- Radius (R1): 52 mm
These dimensions ensure a precise fit for the specified hull thicknesses.
Compatibility Information: The Lewmar Standard Series Portlight is designed to replace old deck panels or hatches on the foredeck of your boat, as well as roof windows installed on camper vans or converted vans. Its ultra-flat profile and comprehensive installation kit make it suitable for various applications.
