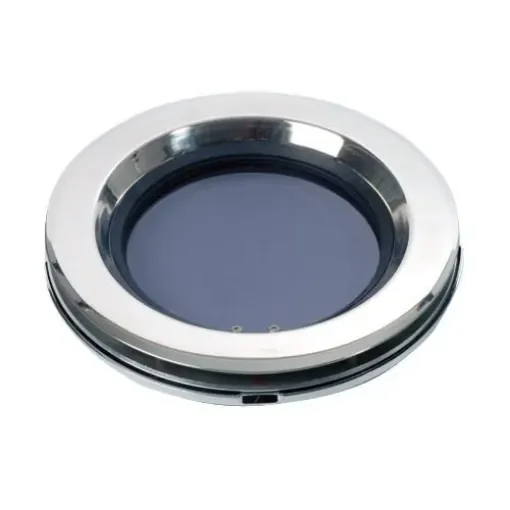

The Lewmar Round Stainless Steel Portlight is a high-quality marine porthole designed for durability and ease of installation. Crafted from polished 316 stainless steel, it features a smoked acrylic lens and a chrome-plated ABS interior trim ring. The portlight offers a 180° opening, facilitating easy access and ventilation. It is CE approved for Category B, Area 1, ensuring compliance with marine safety standards.
- Constructed from polished 316 stainless steel for enhanced corrosion resistance.
- Smoked acrylic lens provides privacy while allowing light.
- Chrome-plated ABS interior trim ring for a sleek finish.
- 180° opening for easy access and ventilation.
- CE approved for Category B, Area 1, meeting marine safety standards.
Technical Specifications
- Overall Diameter: 296 mm (11 5/8 inches)
- Cut-Out Diameter: 277 mm (10 7/8 inches)
- Cut-Out A: 100 mm (3 5/16 inches)
- Cut-Out B: 136 mm (5 3/8 inches)
- Weight: 2 kg (4 lbs)
- Acrylic Window Thickness: 10 mm (3/8 inches)
- Mounting Screws: M5 x 12 screws included, suitable for hull thicknesses between 12 and 17 mm.
- Installation Requirements: Suitable for hull thicknesses between 8 and 24 mm; installation requires a flat surface with a maximum tolerance of 1 mm.
Materials
- Frame: Polished 316 stainless steel
- Lens: Smoked acrylic
- Interior Trim Ring: Chrome-plated ABS
Dimensions
- Overall Diameter: 296 mm (11 5/8 inches)
- Cut-Out Diameter: 277 mm (10 7/8 inches)
- Cut-Out A: 100 mm (3 5/16 inches)
- Cut-Out B: 136 mm (5 3/8 inches)
Compatibility Information
Designed for installation on hulls with thicknesses between 8 and 24 mm. The portlight is suitable for both sailboats (Category A, Area 2a) and powerboats (Category B, Area 1).
