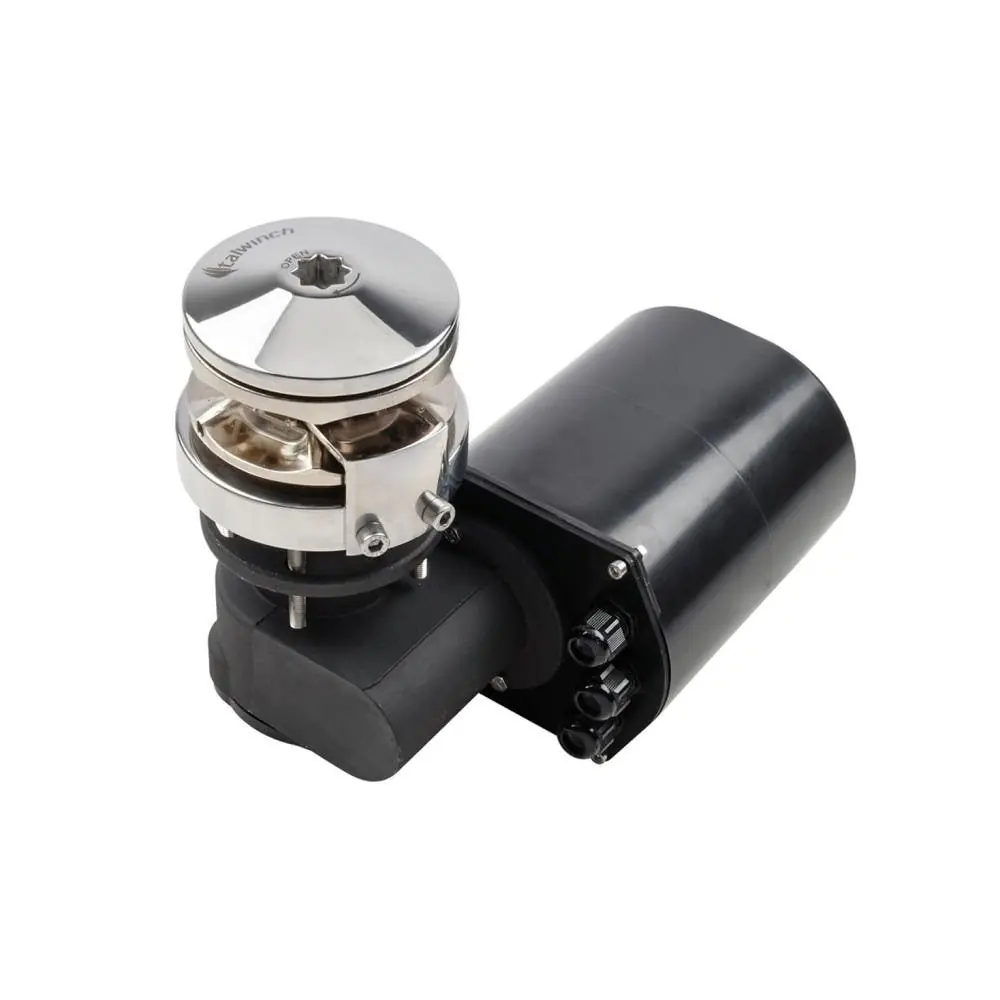

The Italwinch Smart R3 is a compact vertical electric windlass designed for boats ranging from 9 to 16 meters in length. It features a polished AISI 316 stainless steel external unit and an aluminum gypsy, ensuring durability and resistance to marine environments. The windlass is equipped with a pre-installed chain counter sensor, facilitating easy installation of a digital chain counter. Its IP67-rated motor is fully protected against dust and can withstand temporary immersion in water up to one meter for less than 30 minutes, ensuring reliable operation in challenging sea conditions.
- Material Construction: External unit made of polished AISI 316 stainless steel; gypsy constructed from aluminum.
- Integrated Chain Counter: Pre-installed sensor for easy addition of a digital chain counter.
- Waterproof Motor: IP67-rated motor, dustproof and capable of withstanding temporary immersion in water up to one meter for less than 30 minutes.
- Boat Compatibility: Recommended for boats ranging from 9 to 16 meters in length.
Technical Specifications:
- Motor Power: 1000 W
- Voltage: 12 V
- Current Draw: 115 A
- Chain Diameter: 8 mm
- Maximum Pull: 930 kg
- Working Load: 130 kg
- Line Speed: 25 m/min
- Dimensions: Height: 30 cm; Width: 44 cm; Length: 44 cm
- Weight: 18.95 kg
Materials:
- External Unit: Polished AISI 316 stainless steel
- Gypsy: Aluminum
Compatibility Information:
- Boat Length: Suitable for boats from 9 to 16 meters
- Chain Compatibility: Compatible with 8 mm chain
