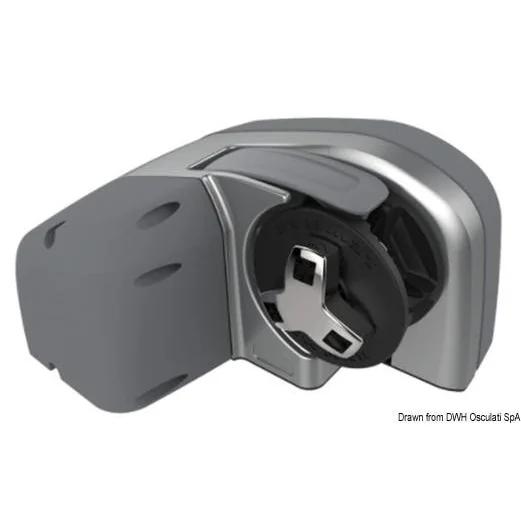

The Lewmar HX1 Horizontal Windlass is a robust and reliable anchoring solution designed for small to medium-sized boats. It features a horizontal inline motor and an epicyclic gearbox, ensuring efficient and quiet operation. The windlass is constructed with an anodized aluminum chassis, providing durability and resistance to corrosion. It is available in two motor power options—500W and 800W—and two gypsy sizes—6/7 mm (1/4") and 8 mm (5/16")—to accommodate various boat sizes and anchoring needs.
- Motor Options: 500W and 800W in 12V.
- Gypsy Sizes: 6/7 mm (1/4") and 8 mm (5/16").
- High-Efficiency Gearbox: Equipped with a high-efficiency epicyclic gearbox for smooth operation.
- Waterproof Design: Sealed unit with an IP67 rating, requiring minimal maintenance.
- Durable Construction: Anodized aluminum chassis with a choice of polymer or anodized aluminum covers.
- Quiet Operation: Designed for quiet operation under load.
| Specification | 500W Model (6/7 mm) | 500W Model (8 mm) | 800W Model (6/7 mm) | 800W Model (8 mm) |
|---|
| Maximum Pull | 700 kg | 700 kg | 1065 kg | 1065 kg |
| Working Load Limit | 175 kg | 175 kg | 266 kg | 266 kg |
| Maximum Line Speed | 20 m/min | 20 m/min | 21 m/min | 21 m/min |
| Normal Current Draw | 75 A | 75 A | 105 A | 105 A |
| Circuit Breaker Rating | 50 A | 50 A | 70 A | 70 A |
| Approximate Weight | 9 kg | 9 kg | 9.5 kg | 9.5 kg |
The HX1 windlass is suitable for boats ranging from 6 to 13 meters in length, depending on the motor and gypsy size selected. The 500W motor is recommended for boats up to 9 meters, while the 800W motor is suitable for boats up to 13 meters.
