The Lewmar EVO® Self-Tailing Winch is a state-of-the-art winch that builds upon the legacy of the renowned Lewmar Ocean winch series. Designed with years of expertise, the EVO® winch offers exceptional performance, reliability, and ease of maintenance.
- Easy Servicing: No tools are required for maintenance; simply unscrew the top flange by hand to remove the drum and access the gears.
- User-Friendly Direction Arrows: Clearly marked arrows ensure correct rope loading, enhancing usability for both experienced and novice sailors.

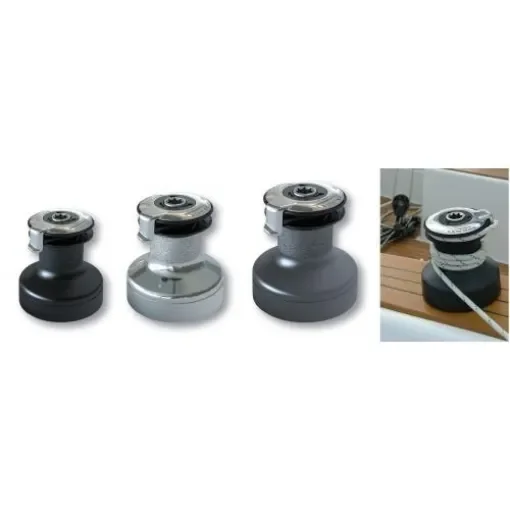

- Varied Styles and Finishes: Available in black, grey, or chrome bronze finishes to match different boat aesthetics.
- Convertible to Electric: Models size 40 and above can be upgraded to electric operation, providing versatility for various sailing programs.
- 7-Year Warranty: Demonstrating confidence in quality, Lewmar offers a comprehensive 7-year warranty on the EVO® winch range.
The EVO® Self-Tailing Winch is available in various sizes, each with specific technical specifications. Below are the details for the 40ST model:
- Gear Ratios:
- First Gear: 1.9:1
- Second Gear: 5.8:1
- Power Ratios:
- First Gear: 13.2:1
- Second Gear: 40.2:1
- Safe Working Load (SWL): 795 kg (1,753 lbs)
- Weight: 4.9 kg (10.7 lbs)
- Drum Diameter (D): 74 mm (2.91 inches)
- Base Diameter (B): 148 mm (5.83 inches)
- Height (H): 158.5 mm (6.24 inches)
- Line Entry Height (L): 79 mm (3.11 inches)
- Line Size: 8-12 mm (5/16" - 1/2")
The EVO® Self-Tailing Winch is suitable for various sailing applications, from short-handed cruising to long-distance voyages. Models size 40 and above can be converted to electric operation, providing versatility for different sailing programs.
