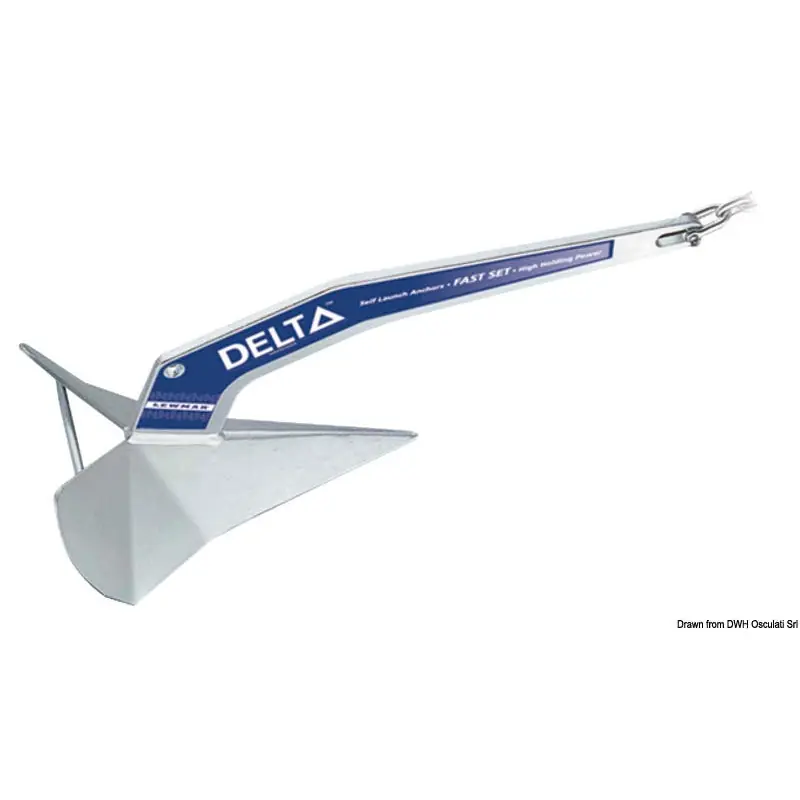

Key Features:
- High-Grade Construction: Manufactured from high-grade galvanized manganese steel, ensuring maximum strength and corrosion resistance.
- Self-Launching Design: Unique shank profile and ballasted tip facilitate self-launching, allowing the anchor to fall unaided from bow rollers.
- Immediate Setting: Low center of gravity and self-righting geometry ensure rapid setting upon contact with the seabed.
- High Holding Power: Lloyd's Register General Approval as a High Holding Power anchor, specified by numerous National Lifeboat organizations.
- Lifetime Guarantee: Guaranteed for life against breakage; damage by deformation or bending is not covered.
Technical Specifications:
- Available Sizes:
- 4 kg (9 lb)
- 6 kg (14 lb)
- 20 kg (44 lb)
- 32 kg (70 lb)
- 40 kg (88 lb)
- 50 kg (110 lb)
- 63 kg (140 lb)
- Recommended Chain Sizes:
- 4 kg (9 lb): 6-7 mm
- 6 kg (14 lb): 6-7 mm
- 20 kg (44 lb): 10 mm
- 32 kg (70 lb): 12 mm
- 40 kg (88 lb): 14 mm
- 50 kg (110 lb): 16 mm
- 63 kg (140 lb): 18 mm
Materials:
- High-grade galvanized manganese steel
Dimensions:
- 4 kg (9 lb) Anchor:
- Length: 514 mm (20 1/4 inches)
- Width: 230 mm (9 inches)
- Shank Diameter: 8 mm (5/16 inches)
- Fluke Length: 387 mm (15 1/4 inches)
- Fluke Width: 210 mm (8 1/4 inches)
- 6 kg (14 lb) Anchor:
- Length: 593 mm (23 3/8 inches)
- Width: 265 mm (10 3/8 inches)
- Shank Diameter: 10 mm (3/8 inches)
- Fluke Length: 450 mm (17 5/8 inches)
- Fluke Width: 243 mm (9 1/2 inches)
- 20 kg (44 lb) Anchor:
- Length: 877 mm (34 1/2 inches)
- Width: 392 mm (15 3/8 inches)
- Shank Diameter: 16 mm (5/8 inches)
- Fluke Length: 663 mm (26 1/8 inches)
- Fluke Width: 357 mm (14 inches)
- 32 kg (70 lb) Anchor:
- Length: 1,016 mm (40 inches)
- Width: 457 mm (18 inches)
- Shank Diameter: 19 mm (3/4 inches)
- Fluke Length: 762 mm (30 inches)
- Fluke Width: 406 mm (16 inches)
- 40 kg (88 lb) Anchor:
- Length: 1,067 mm (42 inches)
- Width: 508 mm (20 inches)
- Shank Diameter: 20 mm (13/16 inches)
- Fluke Length: 813 mm (32 inches)
- Fluke Width: 457 mm (18 inches)
- 50 kg (110 lb) Anchor:
- Length: 1,143 mm (45 inches)
- Width: 559 mm (22 inches)
- Shank Diameter: 22 mm (7/8 inches)
- Fluke Length: 914 mm (36 inches)
- Fluke Width: 508 mm (20 inches)
- 63 kg (140 lb) Anchor:
- Length: 1,219 mm (48 inches)
- Width: 610 mm (24 inches)
- Shank Diameter: 25 mm (1 inch)
- Fluke Length: 1,067 mm (42 inches)
- Fluke Width: 559 mm (22 inches)
