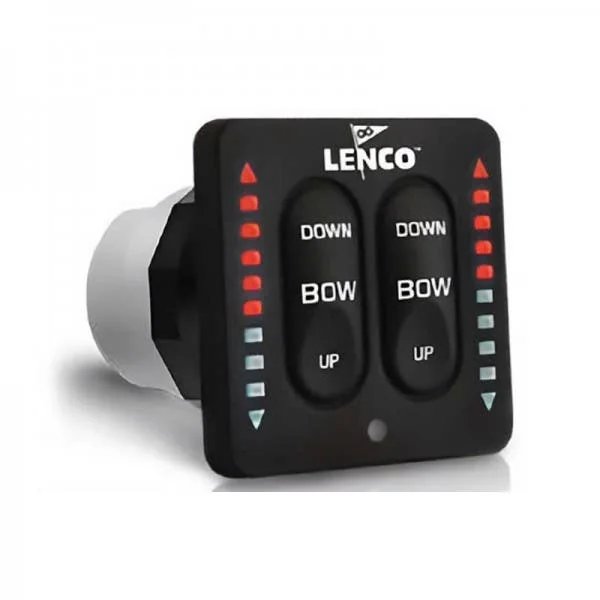

Lenco - Semi-Integrated Double Control Panel with LED - 15171-001

Key Features:

• Integrated Design: Combines the control panel and management box into a single unit, simplifying installation and reducing the required mounting depth.
• LED Indicators: Provides clear visual feedback on flap positions, enhancing operational precision.
• Retractor Function: Automatically retracts flaps when power is removed, preventing potential damage.
• Waterproof Construction: Ensures durability and reliable performance in marine environments.
• Backlit Keypad: Facilitates easy operation during low-light conditions.

Technical Specifications:

• Buttons: 2 (for controlling two actuator flaps)
• Power Supply: Compatible with 12V or 24V systems
• Mounting Requirements:
  • Hole Cutout Size: Approximately 5.24 cm (2 1/16 inches) in diameter
  • Required Depth for Management Box: 5.5 cm
  • Space from Back for Mounting: 10 cm
• Dimensions:
  • Control Panel Size: 7 cm x 7 cm
  • Power Cable Length: 92 cm
  • Wiring Length from Back of Switch Frame: 76.2 cm
• Materials: Constructed with marine-grade materials for enhanced corrosion resistance
• Compatibility: Designed for use with Lenco double actuator flaps
