Lenco - Integrated Tactile Switch Kit for Trim Tabs - 15169-001

Manufacturers: Lenco , Lenco Marine
Effortlessly control your trim tab systems with this waterproof tactile switch kit designed for single actuators.
Manufacturer part number: 15169-001
GTIN: 0874847003339
Vendor: Cabesto
Availability: In stock
€244.00
i h

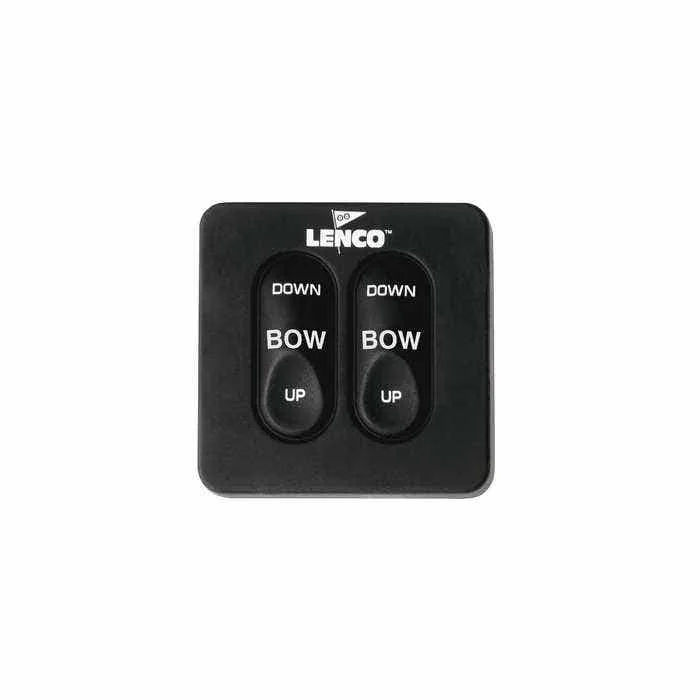

The Lenco Standard Integrated Tactile Switch Kit is designed for single actuator trim tab systems, offering a maintenance-free, all-in-one solution that integrates the control box functionality into the keypad bezel.

  • Plug & Play Installation: Simplifies setup with waterproof Deutsch connectors.
  • Retractor Function: Automatically retracts flaps when power is disconnected.
  • Low Profile Design: Provides a sleek and unobtrusive appearance.
  • Backlit Keypad: Enhances visibility in low-light conditions.

Technical Specifications

  • System Compatibility: Single actuator systems.
  • Power Supply: Compatible with 12V and 24V DC systems.
  • Wiring Harness Length: 76.2 cm (30 inches) from the back of the switch bezel.
  • Power Pigtail Length: 91.4 cm (36 inches).
  • Hole Cutout Size: 5.2 cm (2 1/16 inches) diameter.
  • Overall Keypad Dimensions: 7.0 cm x 7.0 cm (2.75 inches x 2.75 inches).
  • Mounting Depth Requirement: Approximately 10.4 cm (4.08 inches) clearance from the back of the mounting location.

Materials

  • Keypad: Constructed with durable, waterproof materials to ensure longevity and reliability in marine environments.

Compatibility Information

  • System Compatibility: Designed specifically for single actuator trim tab systems.
  • Voltage Compatibility: Supports both 12V and 24V DC systems.
