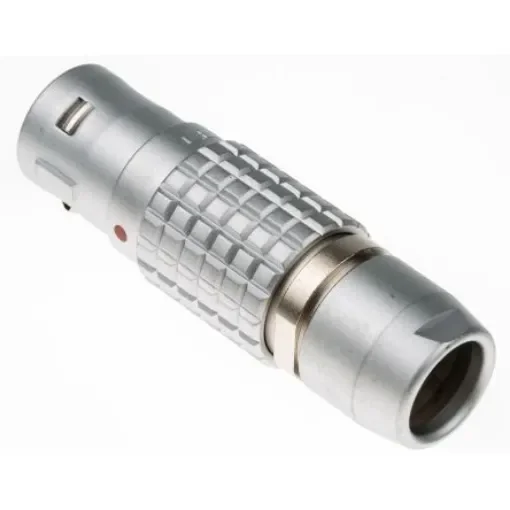

LEMO Circular Connector, 8 Contacts, Cable Mount, Plug, Male, IP50, 3B Series - FGG.3B.308.CLAZ

Lemo Circular ConnectorThe Lemo 3B series 8-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 13A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut. The free plugs are supplied with collets to take a maximum cable diameter of 9mm. Cable plug From Lemo, this FGG 0B/1B series cable mount plug offers speedy and durable connection to corresponding sockets and is suitable for a wide range of applications. A selection of collets is also included as part of this offer. Note: The current ratings quoted in the table are per pinFeatures and BenefitsStraight body orientation with cable clamping and positioning guide Solder termination EMC shielding of 360° Endurance is 5000 mating cycles Equipped with male contacts for soldering G keyed High vibration and shock resistance Operating temperature ranges between -55°C and 250°C PEEK insulating material Shell size is 3mmApplicationsMedical devices Research Test and measurement instrumentationCertificationsIP50 rated UL approved
