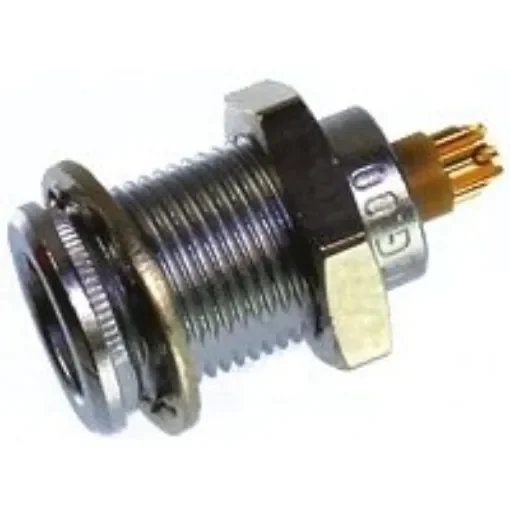

LEMO Circular Connector, 5 Contacts, Panel Mount, M7 Connector, Socket, Female, IP50, 00 B Series - EGG.00.305.CLL
LEMO's M7 circular connector features 5 contacts and IP50 protection, ideal for compact applications.
Manufacturer part number: EGG.00.305.CLL
GTIN: 5059045691099
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Number of Contacts = 5
Mounting Type = Panel Mount
Connector Size = M7
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP50
Current Rating = 1.7A
Body Orientation = Straight
Shell Size = 0
Housing Material = Brass
Maximum Operating Temperature = +250°C
IEC 60512-5, -4, -6, IEC 60529, IEC 60068-1. Chassis Socket. The 00 series of circular connectors from Lemo are suitable for many applications requiring a compact high density connector. This range of chrome plated brass bodied connectors include an inner sleeve and seals to prevent penetration of solids or liquid contaminates and are G keyed.These durable circular connectors give a protection index of IP50 as per IEC 60529 standard and offer 360 degree EMC shielding. IP50 rated when mated Upto 5000 mating cycles Temperature range -55 to +250° C Push-pull latching system
