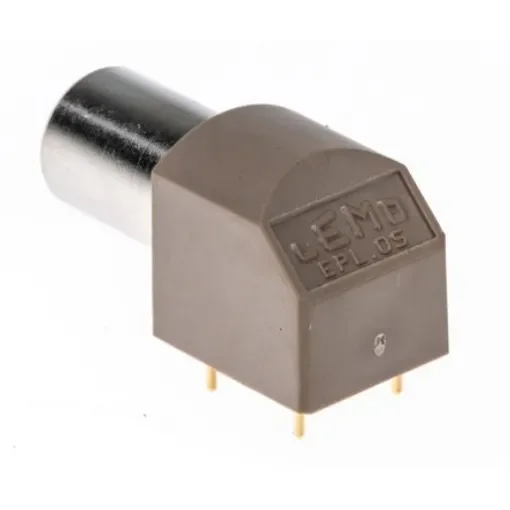

LEMO Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP50, 0S Series - EPL.0S.304.HLN

Lemo Circular ConnectorThe Lemo 0S series 4-contacts female elbow socket circular connector has a current rating of 4.5A. This connector features a highly precise push-pull latching system with high-density panel spacing and quick mating or unmating. It has a rugged and robust design to resist every environmental and mechanical requirement for indoor and outdoor applications. It is made from polyphenylene sulphide and nickel-plated brass contacts for a printed circuit with hermaphroditic keying (half-moon insert). S series cylindrical connectors Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable. Available in 3 different sizes (0S, 1S and 2S) with different contact layouts. Series of metal multi-pin connectors with very compact dimensions. The correct keyway is ensured by the insulating unit (both male and female). PCB installation and drilling plan supplied with every product.Features and BenefitsRight angled body orientation Solder termination EMC shielding of 360° Endurance is 5000 mating cycles High vibration and shock resistance Operation temperature ranges between -55°C and 250°C Waterproof and UV resistance capabilitiesApplicationsAudio/video applications Medical devices Research Test and measurement instrumentationCertificationsIP50 rated UL approved
