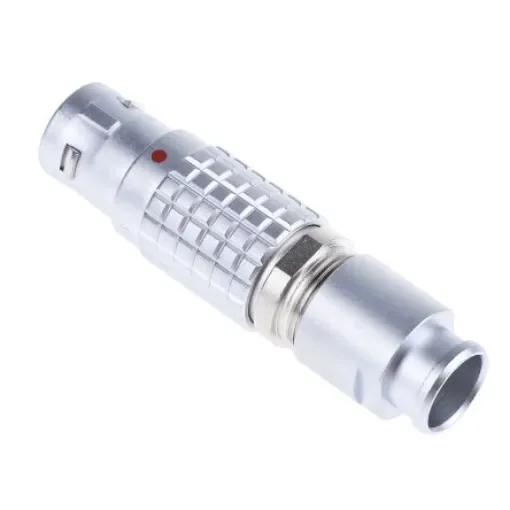

LEMO Circular Connector, 3 Contacts, Cable Mount, Plug, Male, IP50, 2B Series - FGG.2B.303.CLAD92Z

Lemo Circular ConnectorThe Lemo 2B series 3-contacts male circular connector has a plug in-line connection. This panel mount connector has a current rating of up to 17A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut. The free plugs are supplied with collets to take a maximum cable diameter of 9mm. Cable plug From Lemo, this FGG 0B/1B series cable mount plug offers speedy and durable connection to corresponding sockets and is suitable for a wide range of applications. A selection of collets is also included as part of this offer. Note: The current ratings quoted in the table are per pinFeatures and BenefitsStraight body orientation Solder termination Cable acceptance ranges between 8.3mm and 9.2mm EMC shielding of 360° Endurance is 5000 mating cycles High vibration and shock resistance Operation temperature ranges between -55°C and 250°C Shell size is 2mm Waterproof and UV resistance capabilitiesApplicationsMedical devices Research Test and measurement instrumentationCertificationsIP50 rated UL approved
