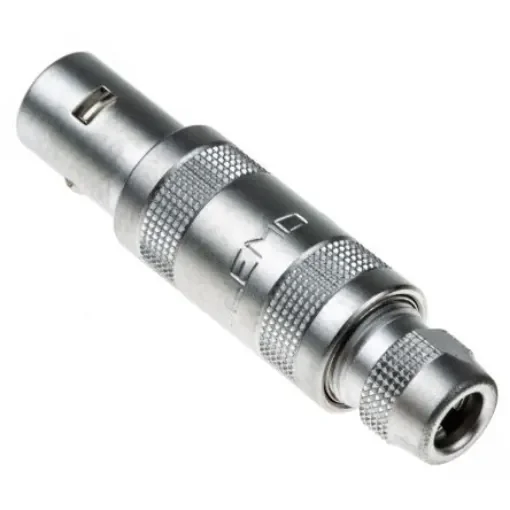

LEMO Circular Connector, 1 Contacts, Cable Mount, Plug, Male, IP50, 0S Series - FFA.0S.250.CTAC32

Lemo Coaxial ConnectorThe Lemo 0S series single contacts male coaxial connector has a plug in-line connection. This cable mount connector has a voltage rating of 3000VAC and a current rating is up to 6A per contact. This connector features a highly precise push-pull latching system with high-durability strain relief collets and in-built keying to prevent mismating. It has a rugged and robust design to resist every environmental and mechanical requirement for indoor and outdoor applications. It is made from chrome-plated brass with collet nut and nickel-plated brass latch sleeve.Features and BenefitsSolder termination Straight body orientation 360° EMC shielding Cable acceptance ranges between 2.7mm and 3.1mm Easy cable assembly Endurance is 5000 mating cycles High vibration and shock resistance Impedance is 50ohm Operation temperature ranges between -55°C and 250°C Waterproof and UV resistance capabilitiesApplicationsAudio/video application Medical devices Research Test and measurement instrumentationCertificationsIP50 rated UL approved
