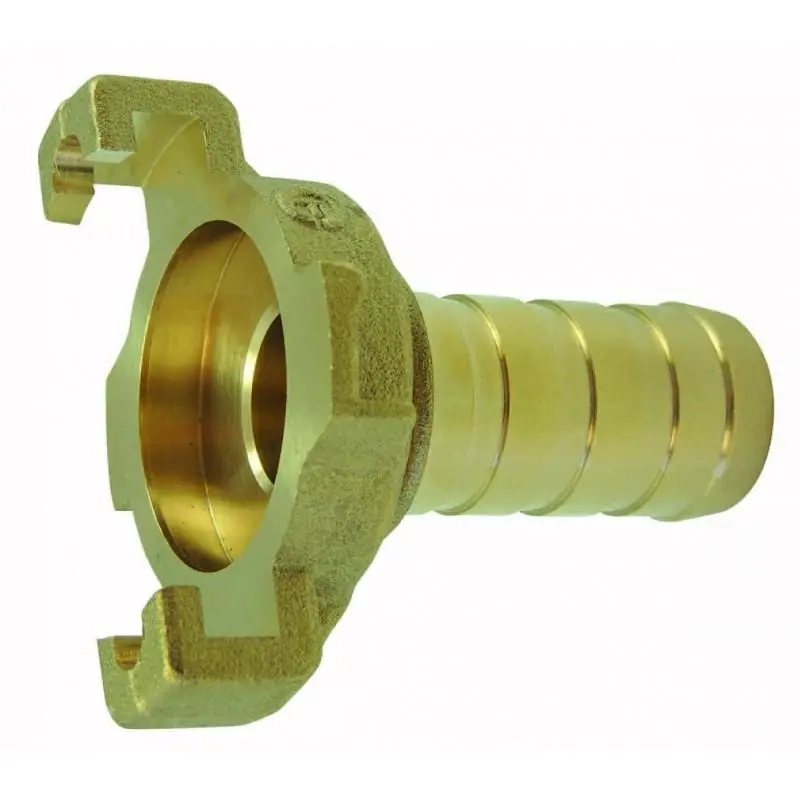

Legris - Brass Quick Connect Fitting 13mm Hose Barb - 0134 56 13

Manufacturer: Legris
This durable brass quick connect fitting ensures secure connections for pneumatic applications.
Manufacturer part number: 0134 56 13
Vendor: Deal Marine
*
Availability: Out of stock
€7.85
i h

Key Features:
- Designed for pneumatic applications, suitable for connecting air tools and compressors.
- Features a 13mm hose barb connection for secure attachment.
- Constructed from brass for enhanced durability and resistance to corrosion.
- Compatible with CEJN 410 and Rectus Series 27 standards.
- Single shut-off mechanism allows for one-handed operation.

Technical Specifications:
- Connection Type: Hose Barb
- Thread Size: R 1/4 Male
- Hose Barb Connection: 13mm
- Material: Brass
- Maximum Operating Pressure: 16 bar
- Temperature Range: -20°C to +100°C
- Seal Material: Technical Polymer

Materials:
- Body: Brass
- Seal: Technical Polymer

Dimensions:
- Length: 42.5mm
- Diameter: 26mm
- Thread Size: 1/4" BSP

Compatibility Information:
- Interchangeable with CEJN 410 and Rectus Series 27 connectors.

Additional Details:
- Ideal for heavy-duty applications requiring high flow capacity and low pressure drop.
- Allows for quick and secure connections and disconnections without the need for tools.
