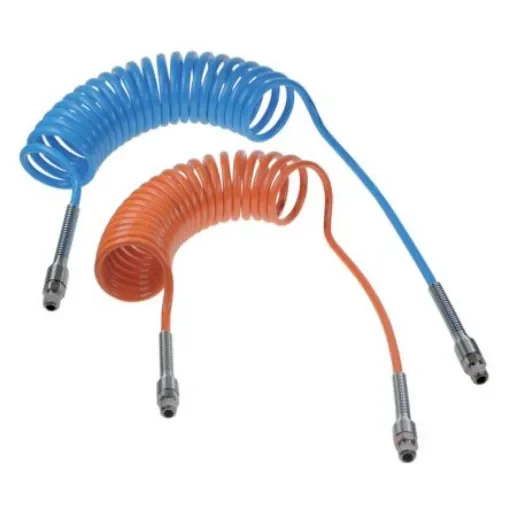

Legris 2m, PA Recoil Hose, with R 1/4 connector - 1470P06 04 13

Maximum Operating Length = 2m
Tube Outside Diameter = 6mm
Connector = R 1/4
Colour = Blue
Tube Inside Diameter = 4mm
Manufacturer Series = 1470P
Material = PA
Maximum Operating Pressure = 20bar
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +80°C
Number of Tubes = 1

DI: 97/23/EC (PED) RG: 1907/2006 (REACH) DI: 2002/95/EC (RoHS), 2011/65/EC. Polyamide (PA) Recoil Tubing. Parker Legris recoil tubing has a lasting memory after multiple uses, offering an alternative to reels for excellent ergonomics and space saving. The pre-assembled tubes are equipped with a protection spring, preventing damage to the ends. Features and Benefits. Excellent mechanical properties. Low-pressure drop. Self-retracting. Identical technical performance to PA tubing. Ready to use. Available with pre-assembled connectors. Large choice of colours to facilitate circuit identification. Silicone-free. Product Application Information. Transportation. Miscellaneous manufacturing. Vehicle assembly facilities. Machine tools. Primary metal refining and processing. The polyamide recoil tubing from Parker Legris can be used for compressed air and lubricant conveying. Ideal for use in maintenance workshops, power hand tools and industrial cleaning.
