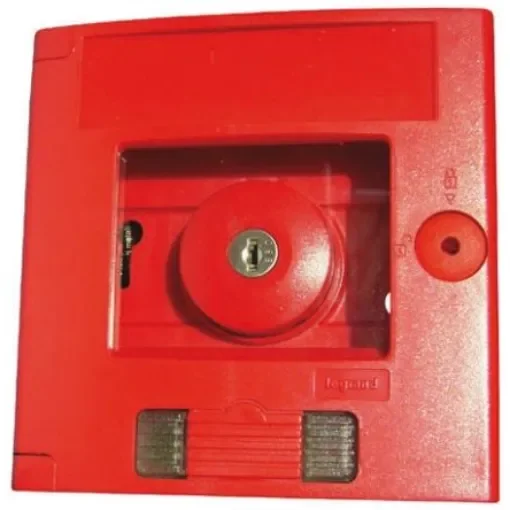

Legrand Red Break Glass Call Point, Operated, Mains-Powered - 0 380 09
Ensure safety with the Legrand Break Glass Call Point, designed for quick emergency access.
Manufacturer part number: 0 380 09
GTIN: 3245060380090
Colour = Red
Call Point Type = Break Glass Emergency Box
Operation Type = Snatch off plastic Window
Power Source = Mains
Element Material = Glass
Box Material = PC
Depth = 71 mm
Height = 125 mm
Width = 125mm
NF C 15-100. "Break glass" safety box, red fist + indicator light. Supplied with:. – glass door, on hinges with ability to lock with key no. 850 (ref. 013 90). – 3 cable entries for PE ISO 20 (from above or below using the reversible base). – 2 x Ø 20 entries at the back of the product. – 2 side entries for mouldings 20 x 12.5 and 32 x 12.5. – 1 N/C contact ref. 248 32, 1 N/O contact ref. 248 31. 230 Vac 6 A. 400 Vac 4.5 A. 48 Vdc 1 A. 24 Vdc 1.5 A. Class II – IK 07. 2 indicator lights (green and red) with long-life LEDs. ref. 380 59. IP30 Dimensions: 125 x 125 x 33. ref. 380 09. IP44 Dimensions: 125 x 125 x 71.
