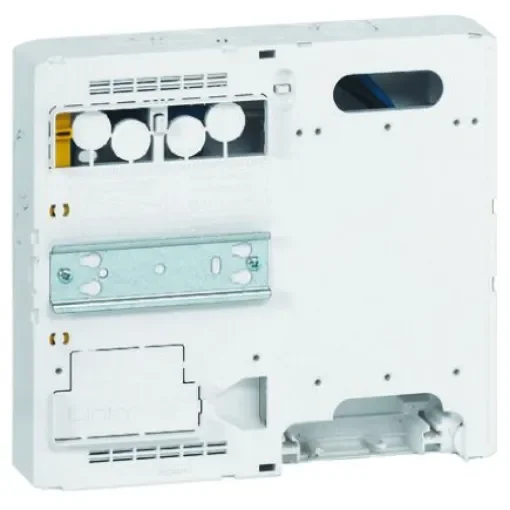

Legrand Mounting Plate for use with DRIVIA cabinets - 4 011 81

Drivia Distribution Cabinets. The Drivia distribution cabinets have rows of 13 modules and are compliant with regulations governing public and high-rise buildings in accordance with standard EN 60695-2-11. They also conform to IEC 60670-24. The Drivia cabinets have pivoting removable rails can be mounted on housing service ducts or straight on the wall. Technical characteristics. White RAL 9003 cover White RAL 9003 or transparent door IP30 - IK05 without door / IP40 - IK07 with door Self-extinguishing 750°C (public buildings) Double insulation with insulated back plate 400 Vac - 50/60 Hz rated operating voltage 400 Vac - 50/60 Hz rated insulation voltage 10 kA Short-circuit current Operating temperature -10°C to + 40°C (storage and installation -20°C to + 70°C) 60A maximum permissible current. Materials. High impact polystyrene cover / frame Polycarbonate door (if supplied) ABS and chrome handle Polycarbonate labelling strip Glass fibre filled polycarbonate rail supports Glass fibre filled polycarbonate cover screws Galvanised steel rails Polyamide door release Polypropylene hinge Glass fibre filled polycarbonate joining kit High impact polystyrene document holder
