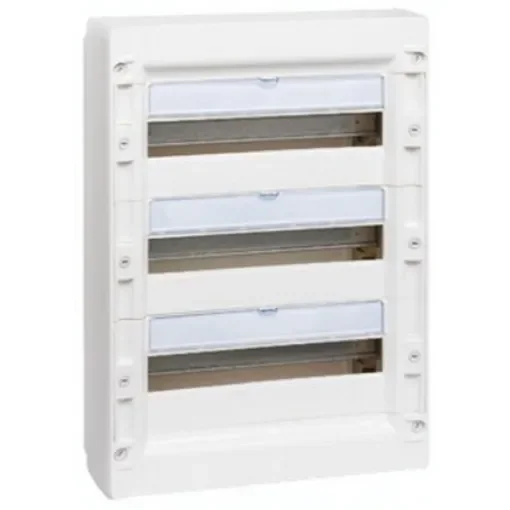

Legrand 54 Way Plastic Consumer Unit, 125A, IP30, IP40 XL125 - 4 016 13

Series = XL125
Number of Ways Total = 54
Current Rating = 125A
Dimensions = 600 x 450 x 128mm
Housing Material = Plastic
International Protection Rating = IP30, IP40
Depth = 128mm

Conform to IEC 60439-3 and IEC 60670-24. Removable and pivoting chassis, removable cable entry plate (top and bottom), removable faceplates (for each row), IP 2x screw terminal blocks for neutral and earth, blanking plates (5 modules, separable per module or 1/2 module), 1 sheet of self-adhesive labels for circuit identification (marking per module). XL³ 125 Distribution Cabinets. The Legrand XL³ 125 range of enclosures are designed to meet the needs of all power distribution requirements up to 125 A. These surface mounting distribution cabinets are fully reversible (base, door and faceplates) and are available as a 18, 36, 54 or 72 module version. IP40 - IK09 with door IP30 - IK09 without door Class II Self-extinguishing: resistance to incandescent wire 650° Capacity 18 modules per row White RAL 9003
